602-01
Monitor Energy Dispersive Spectrometer/SEM Systems
The updated PELCO X-Checker® is a calibration aid to help you monitor the performance of your EDS X-ray system on an SEM. The PELCO X-Checker® contains a series of standard materials on your choice of aluminum mount. With PELCO X-Checker®, you can check your detector resolution and calibration, test for contamination on the detector window, monitor low-end sensitivity, and calibrate your image analysis software. When was the last time you checked the performance of your EDS system?

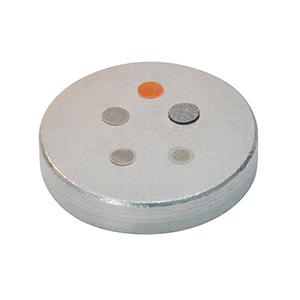

The #602-01 contains:
Manganese to measure full width at half max (FWHM) detector resolution
Aluminum and copper to check spectral calibration
Carbon to monitor calibration at the low end of the spectrum for thin window detectors.
Nickel TEM grid sizes, 40 x 40µm and 18 x 18µm, with ±5% accuracy, are furnished for checking image analysis software calibration. They also facilitate an easy test for monitoring the amount of vacuum pump oil contamination on the detector window
Instruction booklet and storage case included.
PELCO® Technical Notes, PELCO X-Checker® (710KB PDF)
See mount selections, types A-R

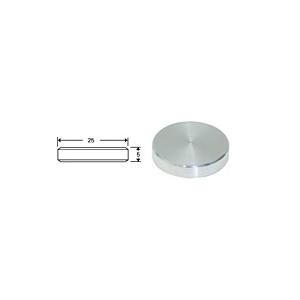

602-01 - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Unmounted

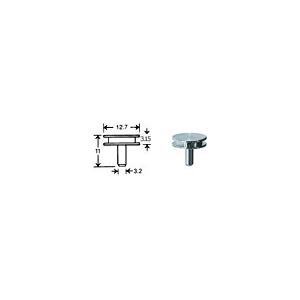

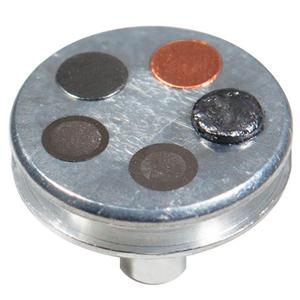

602-01A - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, A-Mount
602-01B - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, B-Mount
602-01C- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, C-Mount
602-01D - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, D-Mount
602-01E- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, E-Mount
602-01F- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, F-Moun
602-01G- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Customer Supplies Mount
602-01K- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, K-Mount
602-01L- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, L-Mount
602-01M- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, M-Mount
602-01O - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, O-Mount
602-01P- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, P-Mount
602-01Q - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, Q-Mount
602-01R- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, R-Mount
602-01AFM - PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, AFM-Mount
602-01S- PELCO X-Checker®: Mn, Cu, C, 400 and 1000 mesh Ni grids, S-Mount
