Adapter MRS-3/4 only, specify AMRAY, Leica

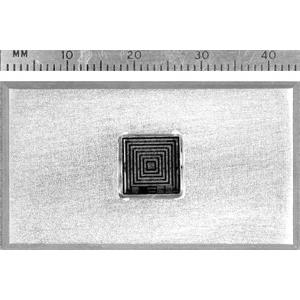

Optical Microscope Adapter OM/R 1.75" x 1" x 0.125" thick (44.5 x 25.4 x 3.2mm) with clear hole for transmission measurements. Standard slightly recessed 0.005" (0.13mm), aluminum, Ni plated
The 10x to 200,000x standard for Scanning Electron Microscopy
with 1/2, 1, 2, 50 and 500Âµm pitch patterns and X & Y Micro-ruler
The fifth generation MRS-4.2 is fabricated using the high accuracy direct write electron beam manufacturing equipment. The pattern is anti-reflective chromium (30nm Cr2O over 40nm Cr) on quartz. Imaging in both secondary and back scattered mode is very high. The pattern is coated with a proprietary conductive material which allows for SEM imaging at any accelerating voltage.

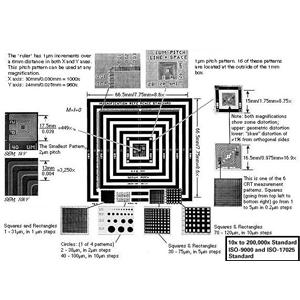

The MRS-4 has groups of nested squares with pitches of 1/2Âµm, 1Âµm, 2Âµm, 50Âµm and 500Âµm. The largest pattern has an overall dimension of 8mm square with lines and spaces of 250Âµm. This can be used to check magnifications between 10 - 100x. The 50Âµm pitch patterns are useful from 100 - 1000x magnifications. The 2, 1 and 1/2Âµm pitch patterns allow calibrations up to 200,000x. Incorporated into the standard are X & Y rulers with 6mm length with 1Âµm increments.
The overall size of the MRS-4 is approx. 9 x 9 x 2.3mm. Since the standard is made on quartz, it easily chips. We highly recommend ordering the optional protective retainers for the MRS-4.
The standard is mounted in the retainers using an ultra high vacuum compatible, conductive silver epoxy. There are two retainers available:
For the #614-5 SEM/R protective retainer can be mounted on a 25mm pin stub as an option (order #614-62).
A special version of the MRS-4 is available for (S)TEM with a 3mm diameter and a thickness and a thickness of 500Âµm. This will only show the central features and can be viewed with secondary and backscattered electrons, not with transmitted electrons.
Measurements by the NPL in the UK (counterpart of NIST) have demonstrated that the accuracy of the 500Âµm was Â±0.25Âµm, and Â± 0.1Âµm for the 50Âµm and 2Âµm patterns. The 1Âµm and 1/2Âµm patterns have an accuracy of Â±0.04Âµm
The certification is done following ISO guidelines. Each MRS-4 has a unique serial number engraved on the standard. Certification includes the serial number, certification date, operator, instrumentation used, actual pattern measurements and measure of accuracy.
NIST = National Institute of Standards and Technology, USA
NPL = National Physical Laboratories, UK (counterpart of NIST)
All standards are carbon coated. Can be supplied uncoated by specific request.
