Wafer Holders with Pin for Wafers with a Flat; 1 - 6"


  • SEM Pin Mount Specimen Holders
    for Scanning Electron Microscopy

    A large selection of SEM specimen holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8") pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9).
    Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs

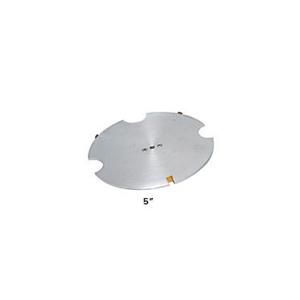

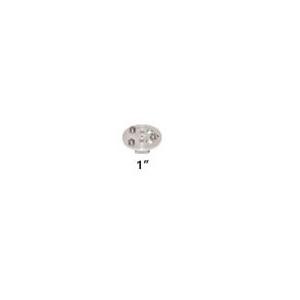

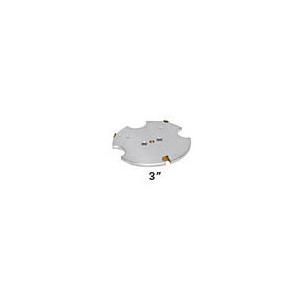

    Six wafer holders for diameters varying from 1"-6" are available. Made of aluminum with brass clips. Each wafer holder has two fixed clips and one spring-loaded clip to secure the wafer on the holder. Cut-outs are provided for easy wafer removal except for 5". The 1" Wafer Holder uses two fixed tapered cones and one spring loaded tapered cone to hold the wafer. Standard 3.2mm (1/8") pin with a length of 9.5mm (3/8").

    Six diameters available: 25mm (1"); 51mm (2"); 76mm (3"); 100mm (4"); 127mm (5"); 150mm (6")

    Screws used are 4-40 x 1/4 Flat Head, SS and 4-40 x 1/4 Tress HD, SS (15388-P)
    Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS (15390-P, 15369-P, 15389-P)
    Screws used are 1-72 x 1/8 Pan Head, SS and 4-40 x 1/4, Flat Head, SS and 4-40 x 3/8 Flat Head, SS (15382-P)

    15388-P - Wafer Holder for 25mm dia. (1"), Pin

    15390-P - Wafer Holder for 51mm dia. (2"), Pin

    15369-P - Wafer Holder for 76mm dia. (3"), Pin

    15389-P - Wafer Holder for 100mm dia. (4"), Pin

    15382-P - Wafer Holder for 150mm dia. (6"), Pin
