    Wafer Carrier Trays - Systems for Research

    1395-10

    Wafer Carrier Trays

    $99.20
    Size
    Material

    • Natural or black conductive polypropylene material

      These high-quality wafer carrier trays are specifically designed for the storage, transport, and handling of semiconductor wafers, glass wafers, or other delicate flat objects. Made from either natural or conductive black polypropylene material and available in sizes from 1" to 6" with maximum grip, minimum contact, and minimum pressure. The wafer or disc carriers have a conical base to support the wafers at the edges only. The wafers are held in place and secured by a spider spring and locking cap.

      Wafer Carrier components include:
      -Base
      -Lid
      -Spider ring (pressure retention, edges, or center)



      • Outside Dimensions
      Product Number
      Wafer Size
      Outside Dimensions
      1395-10, 1397-10B
      1"   (25mm)
      ø33 x 10mm
      1395-15
      1.5"   (38mm)
      ø48 x 10mm
      1395-20, 1397-20B
      2"   (50mm)
      ø60 x 11mm
      1395-25, 1397-25B
      2.5"   (63mm)
      ø75 x 11mm
      1395-30, 1397-30B
      3"   (75mm)
      ø84 x 11mm
      1395-40, 1397-40B
      4"   (100mm)
      ø110 x 11mm
      1395-50
      5"   (130mm)
      ø138 x 18mm
      1395-60, 1397-60B
      6"   (150mm)
      ø160 x 18mm

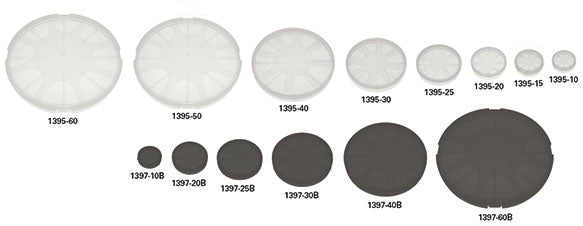

      Round, Natural Polypropylene Wafer Carriers 1" to 6"
      1395-10 Wafer Carrier Tray for 1" (25mm) Single Wafer, Natural Polypropylene pkg/10
      1395-15 Wafer Carrier Tray for 1.5" (38mm) Single Wafer, Natural Polypropylene pkg/10
      1395-20 Wafer Carrier Tray for 2" (50mm) Single Wafer, Natural Polypropylene pkg/10
      1395-25 Wafer Carrier Tray for 2.5" (63mm) Single Wafer, Natural Polypropylene pkg/10
      1395-30 Wafer Carrier Tray for 3" (75mm) Single Wafer, Natural Polypropylene pkg/10
      1395-40 Wafer Carrier Tray for 4" (100mm) Single Wafer, Natural Polypropylene pkg/10
      1395-50 Wafer Carrier Tray for 5" (130mm) Single Wafer, Natural Polypropylene pkg/10
      1395-60 Wafer Carrier Tray for 6" (150mm) Single Wafer, Natural Polypropylene pkg/10
      1397-10B Wafer Carrier Tray for 1" (25mm) Single Wafer, Conductive Black Polypropylene pkg/5
      1397-20B Wafer Carrier Tray for 2" (50mm) Single Wafer, Conductive Black Polypropylene pkg/5
      1397-25B Wafer Carrier Tray for 2.5" (60mm) Single Wafer, Conductive Black Polypropylene pkg/5
      1397-30B Wafer Carrier Tray for 3" (75mm) Single Wafer, Conductive Black Polypropylene pkg/5
      1397-40B Wafer Carrier Tray for 4" (100mm) Single Wafer, Conductive Black Polypropylene pkg/5
      1397-60B Wafer Carrier Tray for 6" (150mm) Single Wafer, Conductive Black Polypropylene

      pkg/5
