12658-CU

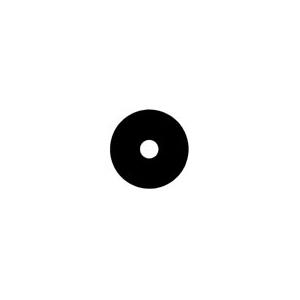

Veco Single Hole Grids

Size
Material

  •

    Veco Single Hole Grids, 600µm Hole

    1. Veco Single Hole Grids, 600µ, 3.05mm O.D., Copper, 100/vial
    2. Veco Single Hole Grids, 600µ, 3.05mm O.D., Nickel, 100/vial

    Veco Single Hole Grids, 800µm Hole

    1. Veco Single Hole Grids, 800µ, 3.05mm O.D., Copper, 100/vial
    2. Veco Single Hole Grids, 800µ, 3.05mm O.D., Nickel, 100/vial



    Veco Single Hole Grids, 1000µm Hole

    1. Veco Single Hole Grids, 1000µ, 3.05mm O.D., Copper, 100/vial
    2. Veco Single Hole Grids, 1000µ, 3.05mm O.D., Nickel, 100/vial

    Veco TEM Grids

    for Transmission Electron Microscopy

    The Veco grids are the most rigid of all mesh grids and offer superior strength while handling. These 3.05mm (0.12") OD grids are manufactured by a precision electro plating process and have a thickness of 20µm. These grids have a shiny and matt side. Veco grids are available in different styles with square, thin/thick bar and hexagonal, mesh, holes and slots. Materials are Cu, Ni and Au.

    Packaging for the Cu and Ni grids is 100/vial and for Au grids 25/vial.

  • Veco Grid Size Specifictions
    Square Mesh Pitch µm Hole µm Bar µm
    100 250 200 50
    150 167 117 50
    200 125 85 40
    300 83 45 38
    400 63 30 33
    Hexagonal Mesh
    100 250 200 50
    200 125 85 40
