    Tapping mode probes for AFM-IR Type D - Systems for Research
    Tapping mode probes for AFM-IR Type D - Systems for Research
    Tapping mode probes for AFM-IR Type D - Systems for Research
    Tapping mode probes for AFM-IR Type D - Systems for Research

    PR-EX-TnIR-D-10

    PR-EX-TnIR-D-10

    $667.00

    • A 10 pack of probes for tapping mode imaging and nanoIR spectroscopic measurements. Pre-mounted on half washer mounts (link 1560-00) specifically for use in Brukers nanoIR platform.

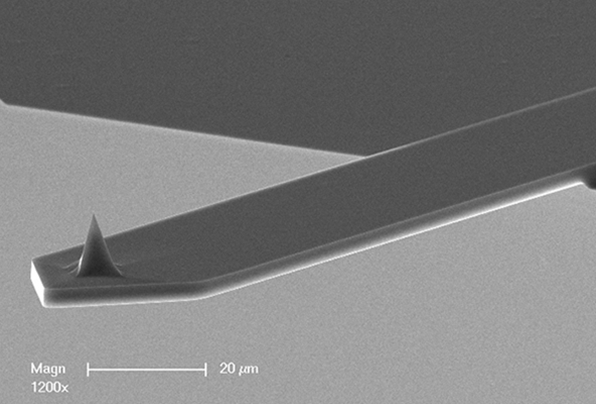

      This 300khz tapping mode probe has a full wrap gold coating, on the reflex side - for increased feedback laser signal, on the tip side - to enable nanoIR measurements.

    • General Specifications

      Property Nominal Value Minimum Maximum
      Tip Radius (nm) 20.0 — 35.0
      Frequency (kHz) 300 200 400
      Length (µm) 125 115 135
      Spring Constant (N/m) 40 20 80
      Width (µm) 40 38 42

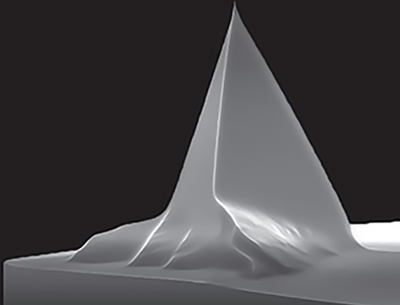

      Tip Specifications

      Feature Value
      Tip Height 12.5 µm
      Front Angle 17.5º
      Back Angle 25.0º
      Side Angle 20.0º
      Coating Au (Gold)

      Cantilever Specifications

      Feature Value
      Material Antimony (n) doped Si (0.010–0.025 Ω·cm)
      Geometry Rectangular
      Number of Cantilevers 1
      Thickness (Nominal) 3.4 µm
      Back Side Coating Au (Gold), 50 nm
