Modular SEM Specimen Holders
This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed.

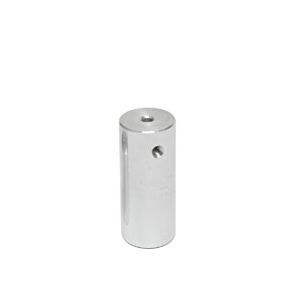

15363-1 - Single Pin Stub Holder Ø15 x 10mm H, M4

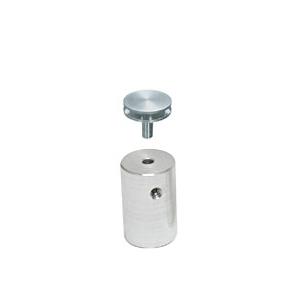

15363-2 - Single Pin Stub Holder Ø15 x 15mm H, M4
15363-3 - Single Pin Stub Holder Ø16 x 25mm H, M4
v x - Single Pin Stub Holder Ø16 x 38mm H, M4

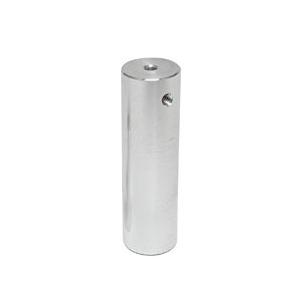

15364 - Single Pin Stub Holder Ø15 x 55mm H, M4
For holding and viewing SEM mounts with the standard 3.2mm pin. Made of aluminum, includes a pin locking screw. Four different heights are available: 10, 25, 38 and 55mm. Short Button Adapter (15372) is needed when used with the Dovetail stage adapters (15371 or 15397).
Screw used is 6-32 x 1/8 hex set screw, stainless steel.
