520-1

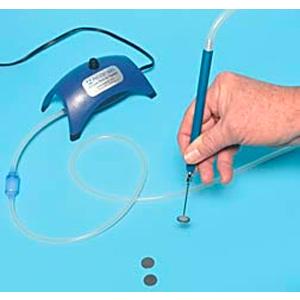

PELCO® Vacuum Pick-Up System with Pump

Select

  • Handle and transport grids and wafers without the use of tweezers

    Use this system for picking up delicate lightweight material with finger controlled vacuum. Attach various hollow needle tips (5 with system) or rubber cups (3 with system) onto the pick-up pen.

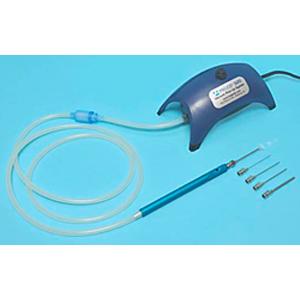

    Vacuum Pick-Up System including pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.14" and 0.4"), in-line filter and hose. Needle tips length is 39mm (1.53").

    Use easy finger control for picking up or releasing.

    Not for wet or corrosive materials.

    Comes with an on/off switch on top of cabinet.

    PELCO® Technical Notes, Vacuum Pick-Up System

    Note: The Pen-Vac™ probes are interchangeable with the PELCO® Vacuum Pick-Up probes

    The 520 PELCO® Vacuum Pick-Up System has a vacuum spec of 8" Hg. This equates to a suction force of 2.75g/mm2. Compensating for cup deformation and leakage, we have determined the practical lifting capacity for the cups and tips as:

    Practical Lifting Capacity
    Cup or Tip
    Prod. No.
    Cup or Tip
    Size
    O.D.
    Size in mm
    I.D.
    Size in mm
    Lifting
    Capacity in g
    520-4 Vac Cup 0.4" 10.2 - 70
    520-5 Vac Cup 0.25" 6.4 - 35
    520-6 Vac Cup 0.14 3.6 - 10
    520-7 Tip, 12 gauge 2.77 2.36 5
    520-8 Tip, 16 gauge 1.65 1.18 1
    520-9 Tip, 18 gauge 1.27 0.80 0.5
    520-10 Tip, 20 gauge 0.9 0.56 0.3
    520-11 Tip, 25 gauge 0.52 0.24 0.05


    Complete System: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.14" and 0.4"), in-line filter and hose. Needle tips length is 39mm (1.53").
