PELCO® Storage Cabinet for SEM Pin Mounts


  • This robust plastic 5 drawer cabinet stores up to 1300 standard 12.7mm (1/2") pin mounts in 5 drawers. Each drawer features a removable clear polypropylene box with hinged lid and latches so you can take that box to the SEM or preparation station for specimen transfer. The pin mounts are held in closed cell rubber foam which is glued to the bottom of the box. Each box in the drawer holds 260 standard 12.7mm (1/2") pin mounts. The lids on the box minimize moisture and dust affecting the contents. A storage map is provided with each drawer/box. The PELCO® pin mount storage cabinet can also be used to store larger diameter pin mounts (up to 100mm/4") or for pin type specimen holders with a maximum height of 32mm (1-1/4").

    The cabinets are made of sturdy and non-corrosive high density polyethylene, the drawers and clear boxes are made from impact polypropylene.

    The PELCO® 5 drawer pin mount storage cabinets are stackable with interlocking grooves.

    Outside dimensions of the cabinet are W15-1/2" x D14-1/2" x H16" (39.5x37.8x40.6cm).

    The internal dimension of the boxes in the drawers are 13-1/8" x 8-7/8" (33.3x22.5cm) with a maximum specimen height of 1-1/4" (32mm).

    The clear plastic boxes are also separately available.

    16760 - PELCO® 5 Drawer Storage Cabinet for SEM Pin Mounts, complete with 5 ea. #16760-10

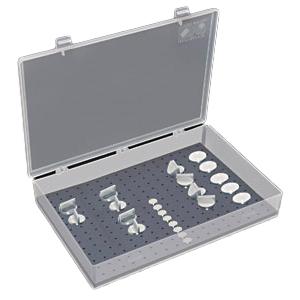

    16760-10 - PELCO® Plastic Storage Box for 260 Pin Mounts

    16760-20 - PELCO® Replacement foam insert for #16760-10
