16151-10

PELCO SEMClip™ Ø25mm Cylinder Mount

Clips

  • PELCO SEMClip™ Specimen Mounts

    The PELCO SEMClip™ SEM specimen mounts have been specifically designed to provide an easy, quick and clean way to mount any type of thin specimen on a specimen stub. The spring loaded clips can accommodate samples with a thickness up to 2mm. The samples are held down securely by a small spring-loaded clip and allow for easy change of samples. They do not require the use of adhesives thus avoiding waiting times and possible outgassing issues. The PELCO SEMClip™ mounts are available with single and multiple clips and are ideal to hold silicon chips, paper, wire, threads, thin films, sheet metal, etc. The PELCO SEMClip™ mounts with multiple clips can be used to either hold larger samples or multiple smaller samples.

    The PELCO SEMClip™ mounts are also ideal to hold the silicon chip specimen support mounts ( #16006, #16007, and #16008). PELCO SEMClip™ versions with 45° and 90° are available for cross section examination. For low working distance and high tilt applications, consider the PELCO Low Profile SEMClip™ Mounts.

    Pin stub versions of PELCO SEMClip™ are available in diameters from 18 to 100mm and can be used with all SEMs using pin stubs: FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan.

    For clamping wires, small tubes, fabric, etc. consider our PELCO SEMclamp™ Holders.

    The cylinder mount versions for JEOL SEMs are available in 25 and 32mm diameter. The SEMClip™ cylinder mount for Hitachi SEMs (with M4 thread) are available in 15, 25, 32 and 50mm diameter.

    Special versions are available for 90°, 45° and variable tilt specimen stubs.

    PELCO SEMClip™ Pin Mounts for FEI/Philips, ZEISS/LEO, Cambridge, Leica, Amray, CamScan and Tescan SEMs

    16151-10 - PELCO SEMClip™, Ø25x8mm JEOL Cylinder Mount, 1 clip

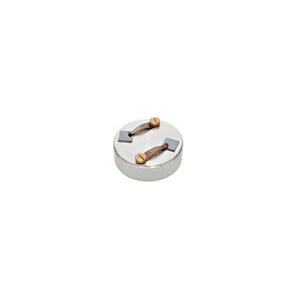

    16151-20 - PELCO SEMClip™, Ø25x8mm JEOL Cylinder Mount, 2 clip

    <

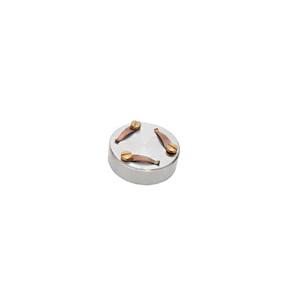

    16151-30 - PELCO SEMClip™, Ø25x8mm JEOL Cylinder Mount, 3 clip
