5051-CF

PELCO® Pro Carbon Fiber Soft Tip Tweezers

Style

  • Scratch proof, polyamide / carbon fiber tips, specially designed to handle sensitive parts, 4 styles.

    NM-SS= non-magnetic stainless steel

    The ESD safe PELCO® Pro carbon fiber soft tip tweezers have scratch proof, polyamide/carbon fiber tips, specially designed to handle sensitive parts.
    The polyamide 66 is reinforced with 30% carbon fibers.
    The soft tips exhibit high rigidity, low friction, self lubricating properties and excellent wear and abrasion resistance.
    The tips have good chemical resistance (oils, grease, fuels, non polar solvents), but are not resistant to strong acid, hot water or steam.
    Can be operated at temperatures up to 130°C (266°F), for short use maximum temperature is 190°C (374°F).
    Typical applications include handling of sensitive components, soft materials, electronic components, micro-mechanical parts, glass, quartz, ceramics and small wafers.
    The tweezers body is made from non-magnetic stainless steel.
    Available in 4 styles.

    Prod # Description Style Length Metal Points
    Width x Thickness
    5051-CF PELCO® Pro Carbon Fiber Soft Tip Tweezers 51 110mm Matt NM-SS 10mm width

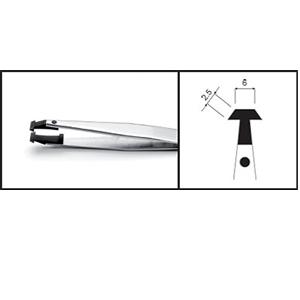

    5052-CF PELCO® Pro Carbon Fiber Soft Tip Tweezers 52 110mm Matt NM-SS 6mm width

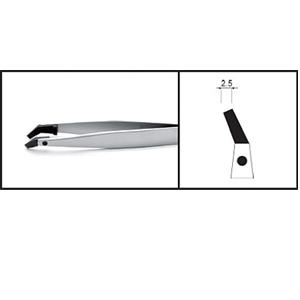

    5053-CF PELCO® Pro Carbon Fiber Soft Tip Tweezers 53 110mm Matt NM-SS angled 2.5mm width

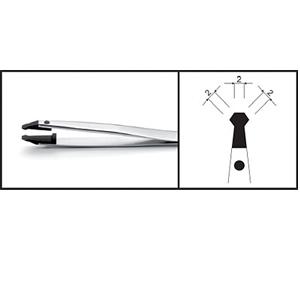

    5054-CF PELCO® Pro Carbon Fiber Soft Tip Tweezers 54 110mm Matt NM-SS triangle 2x2x2mm
