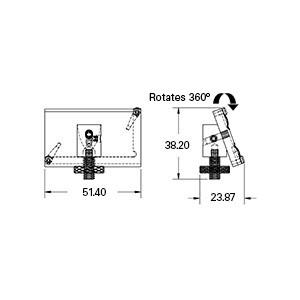

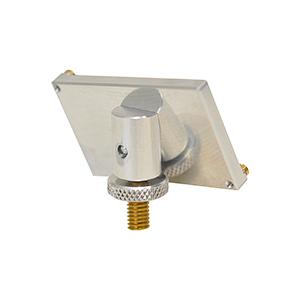

70° pre-tilt EBSD holder with variable size geologic/petrographic thin section holder. Holds either standard petrographic slides of up to 48 x 28mm or slides from 40 x 20mm to 75 x 25mm. Two clips are provided for secure holding. Tweezers insert enables easy loading. Allen wrench included. Fully adjustable, rotatable through 360°.
Screws used are M3 x 3mm set, stainless steel, M4 x 8mm stainless steel socket head cap screw, clip screw is M2 x 3mm pan head, brass, M4 threaded hole.
PELCO® EBSD Pre-Tilt Glass Slide Holder, M4
