91000S

PELCO easiGlow™ Glow Discharge Cleaning System

Select

  • Optimized for cleaning TEM grids

    For one of the most common glow discharge applications, making TEM support films or grids hydrophilic using air, the PELCO easiGlow™ uses an automated and quick cycle with fully selectable parameters. The microprocessor controlled system also offers full manual control for all parameters and an advanced protocol programming feature for custom designed glow discharge applications. Parameters and protocols can be stored to facilitate consistent glow discharge results. Open the shipping box, plug it in, and you can start.

    The PELCO easiGlow™ Glow Discharge Cleaning System is a compact, quick and easy to use standalone system. It is primarily designed for cleaning TEM grids and hydrophilization of TEM carbon support films, which have the tendency to be hydrophobic. A glow discharge treatment with air will make a carbon film surface negatively charged (hydrophilic) which allows aqueous solutions to spread easily. Manufactured in USA.

    With increasingly demanding imaging applications, using clean and consistent quality TEM grids and supports has become more important than ever. Glow discharge treatment of TEM grids removes adsorbed hydro carbons, cleaning them while making them hydrophilic. The PELCO easiGlow™ is an affordable and easy to operate glow discharge system for any TEM lab.

    The practical chamber size with its newly designed glow discharge head and adjustable stage with glass slide holder allows for easy loading and fast turnaround times. The system is fully microprocessor controlled and includes an intelligent touch screen device for control and display of operation parameters. The PELCO easiGlow™ supports both hydrophilic and hydrophobic treatment with either negative or positive charge and includes two separately controlled gas inlets. The required vacuum level is set by an electronically controlled precision proportional valve. This novel approach eliminates manual setting with a needle valve. A gentle venting procedure ensures that the TEM grids are not disturbed when the system is vented.


    Glow Discharge Methods supported:

    Surface Condition Charge Atmosphere
    Hydrophilic Negative Air
    Hydrophilic Positive Air (with subsequent magnesium Acetate treatment)
    Hydrophobic Positive Amylamine (Pentylamine)
    Hydrophobic Negative Methanol

    Reference for glow discharge and use of amylamine to obtain Hydrophobic; positively charged surfaces: Hayat, M.A.2000. Principles and Techniques of Electron Microscopy Biological Applications, page 237-241. Cambridge University Press. ISBN 052163287

    Reference for glow discharge and use of subsequent Magnesium Acetate treatment to obtain Hydrophylic; charged surfaces: Portmann, R., and Koller, Th. 1976. The divalent cation method for protein-free spreading of nucleic acid molecules. In Proceedings of the 6th European Congress on Electron Microscopy, Vol.2, p546.


    Efficient glow discharge performance for the PELCO easiGlow™ with optimum pressure at given distance from sample to glow discharge head.

    Advantages of the PELCO easiGlow™ System

    1. Optimized for cleaning TEM grids
    2. Precise and easy vacuum setting
    3. Short cycle times
    4. Consistent results
    5. Auto, programmed and manual mode
    6. Intuitive touch screen for display and operation
    7. Supports hydrophilic/hydrophobic and negative/positive modes
    8. Affordable, compact, standalone system

    Specifications of the PELCO easiGlow™ Glow Discharge System

    Plasma Current 0-30 mA
    HV Power supply 30W Continuous Rating
    Glow Discharge Head Polarity User Selectable positive or negative
    Process Platform Ø75mm with recess for 25 x 75mm slide
    Glow Discharge Platform Height Control 1-25 mm
    Preprocess Hold Timer 0-14411 sec.
    Process Timer 0-900 sec.
    Chamber Size Ø120 x 100mm H with sealed Delrin® top plate (inside Ø106 x 90mm)
    Process/Vent gas inlets 2 each Ø6 mm barbed, individually user selectable for process, purge or vent
    High Voltage Vacuum Interlocks Dual hardware and software interlocked
    Vacuum Control Pirani Gauge, ranging from atmosphere to 0.01 mbar
    Working Vacuum Range 1.1 - 0.20 mbar for optimal glow
    System Control / Display 3" Touch Panel with LED backlight and 5 function keys
    Operation Modes Auto Programmed (4 user programmed protocols) Manual/Diagnostics
    Data Logging Capabilities Step #, Vacuum (mbar), Current (mA), Voltage (V), and polarity, once per second
    Instrument Size 305 L x 292 D x 230mm H (12" x 11-1/2" x 9 ")
    Weight 6.26 kg (13.8 lbs.)
    GD4 Pump (optional) 337 L x 138 D x 244mm H (13.3" x 5.4" x 9.6 ")
    Weight 11 kg (24 lbs.)
    Laboratory Footprint with optional pump 381 W x 292 D x 330mm H (15" x 11-1/2" x 13 ")
    Power Requirements 120V 60Hz, 15A or 230V 50Hz, 10A Service
    Instrument Power Rating 100-240VAC 60/50Hz 60W Plus Pump, IEC Inlet
    Optional Pump Power Rating 120/230V 60/50Hz 370 W (1/2 hp)
    Vacuum Pump Minimum requirements 2.5 m3/hr, 41 l/m, 1.65 CFM
    0.03 mbar Ultimate Vacuum
    Vacuum Pump Power Outlet on Instrument 8A max IEC Outlet
    Vacuum Inlet KF 16 flange
    Data Logging Capabilities Step #, Vacuum (mbar), Current (mA), Voltage (V), and polarity, once per second
    Communication Port USB Outlet

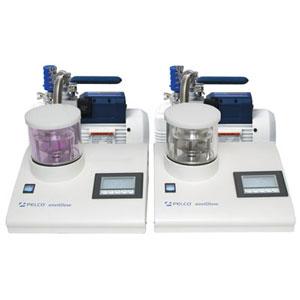

    Dual Chamber PELCO easiGlow™ System

    For those labs which need both hydrophilic and hydrophobic surface treatments on a regular base, a dual glow discharge system is available to avoid cross contamination of the glow discharge chambers. Hydrophobic surfaces are preferable when organic solvents are used.

    PELCO easiGlow™ Cryo-EM Glow Discharge Set

    For easier ordering, we have created a bundle including all items needed for a typical glow discharge setup in a cryo-EM lab. This convenient set includes, in addition to a PELCO easiGlow™ unit, a specially matched vacuum pump with all accessories, a rubber gasket to protect the glass chamber edge, as well as one PELCO® Grid Holder Block, a handy alternative to putting your grids on glass slides. The Grid Holder Block is included in the bundle free of charge, a savings of $60.

    91000S
    91000S-230
    91000
    91002
    91050
    91000-2
    91051
    91054
    PELCO easiGlow™ Cryo-EM Glow Discharge Set, 115V
    PELCO easiGlow™ Cryo-EM Glow Discharge Set, 230V
    PELCO easiGlow™ Glow Discharge Unit
    Dual Chamber PELCO easiGlow™ Glow Discharge System
    Replacement Glass Chamber with sealed top plate
    Replacement Touch Screen Stylus
    O-ring for Glow Discharge Chamber
    Protective L-gasket for 91050
    each
    each
    each
    each
    each
    each
    pkg/2
    each
