PELCO® CF Polyamide Tweezers


  • Electrically conductive, ESD safe tips and non-magnetic SS grips. 25 styles. Sturdy but non-scratching. Outstanding chemical resistance.

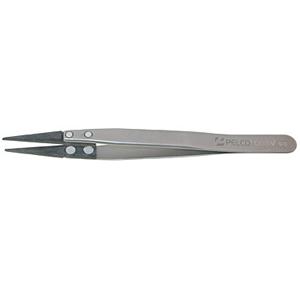

    PELCO® CF, ESD Safe, Polyamide 66, Fixed Tip Tweezers Sharp Points and Flat Tips

    Soft tips specially designed for the electronics industry to help with easy to mar samples and brittle materials such as Si pieces. These ESD-safe tweezers are made of non-magnetic, acid resistant stainless steel with replaceable carbon fiber reinforced tips. Made in Switzerland. Replacement tip kit includes 1 pair of tips and screws.

    Prod # Description Style Length Metal Points
    Width x Thickness
    5114 CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle 259 130mm Carbofib 0.6 x 1.0mm
    5111 CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle 00 130mm Carbofib 1.0 x 2.0mm
    5112 CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle 5 130mm Carbofib 0.5 x 0.6mm
    5113 CF, ESD Safe, Carbofib Tip Tweezers, Stainless Steel Handle 5X 127mm Carbofib 0.5 x 0.6mm
  • PELCO® ESD Safe Plastic Tipped Tweezers
    PVDF (SV), Polyamide 66 (CF), PEEK (CP)

    Conductive, synthetic carbon fiber reinforced tips with non-magnetic stainless steel grips. Sturdy and non-scratching. Clean room compatible. Light weight and strong.

    SV - PVDF (polyvinylidene fluoride) reinforced with carbon fiber.

    1. Excellent mechanical strength and toughness
    2. Smooth surface
    3. Heat stabilized, high heat capability, continuous use temperature up to 150°C (302°F)
    4. High purity (clean room and medical devices approved, low extraction value)
    5. Excellent chemical resistance to most aggressive substances and solvents. Resistant to halogens
    6. Outstanding resistance to hydrofluoric acid (40% conc., 90°C, 194°F), nitric acid (50% conc., 90°C, 194°F), hydrochloric acid (36% conc., 90°C, 194°F)
    7. High abrasion resistance
    8. Resistant to UV and nuclear radiation (sterilization)
    9. ESD safe material
    10. Typical applications include handling of very scratch and contamination-sensitive components, cleaning and etching processes

    CF - Carbofib (Polyamide 66) reinforced with carbon fiber.

    1. Heat stabilized
    2. Very high rigidity, excellent tensile and flexural strength, fatigue and creep resistance
    3. Low friction, self-lubricating properties, excellent wear and abrasion resistance
    4. Good heat capability
    5. Good chemical resistance (oils, grease, fuels, non-polar solvents); not resistant to strong acids, alkalis and hot water or steam
    6. ESD safe material
    7. Very low coefficient of linear thermal expansion
    8. Typical applications include handling of sensitive components and devices (electronic components, micro-mechanical parts, glass and ceramic substrates, capillary, etc.)

    CP - PEEK (polyether ether ketone) reinforced with carbon fiber

    1. Very hard, rigid, high tensile and flexural strength, very high wear resistance
    2. High heat capability (260-300°C, 500-572°F), good dimension stability, low thermal linear expansion coefficient
    3. Excellent resistance to chemicals and aggressive agents, excellent resistance to thermal ageing
    4. ESD-safe material
    5. Typical applications include handling of components in cleaning/chemical/assembly processes also at high temperature (soldering)
