    1GS4H

    PELCO® Aperture Special Metal Grids

    $121.65
    Aperture
    Material

    • for transmission electron microscopy
      packed in anti-static vials

      useful for EDX analysis, high temperature and cryo applications
      packed in anti-static vials

      These grids are available in molybdenum, titanium, aluminum and stainless steel 316. The grids are made by a high precision etching process. The thickness is approximately 25µm for Mo and Al, 15µm for Ti and 12µm for stainless steel. The pattern with the 350-400µm wide rim on the PELCO® grids provide greater stiffness and improves handling of the grids. All grids have a standard diameter of 3.0 to 3.05mm. Available styles are: square mesh, hexagonal mesh, double folding grids, tabbed grids, slotted and aperture grids. The square mesh and double folding grids have a center mark. For standard grid materials such as Cu, Ni and Au, please go to the PELCO® Grids page. Packaging: Mo, Ti, Al and Stainless Steel grids are packaged in 25grids/vial.

      0.4mm Aperture

      1. PELCO® Aperture Grids, 0.4mm Hole, Stainless Steel, 25/vial
      2. PELCO® Aperture Grids, 0.4mm Hole, Titanium, 25/vial
      3. PELCO® Aperture Grids, 0.4mm Hole, Molybdenum, 25/vial

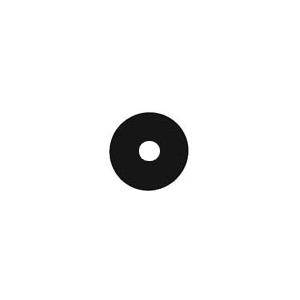

      0.6mm Aperture

      1. PELCO® Aperture Grids, 0.6mm Hole, Molybdenum, 25/vial

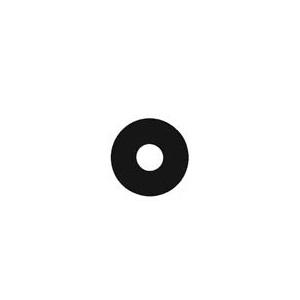

      1.0mm Aperture

      1. PELCO® Aperture Grids, 1.0mm Hole, Stainless Steel, 25/vial
      2. PELCO® Aperture Grids, 1.0mm Hole, Titanium, 25/vial
      3. PELCO® Aperture Grids, 1.0mm Hole, Molybdenum, 25/vial
      4. PELCO® Aperture Grids, 1.0mm Hole, Aluminum, 25/vial

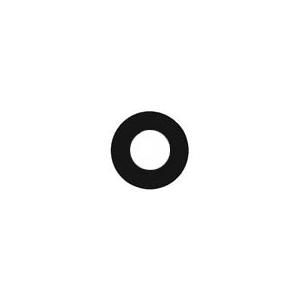

      1.5mm Aperture

      1. PELCO® Aperture Grids, 1.5mm Hole, Stainless Steel, 25/vial
      2. PELCO® Aperture Grids, 1.5mm Hole, Titanium, 25/vial
      3. PELCO® Aperture Grids, 1.5mm Hole, Molybdenum, 25/vial
      4. PELCO® Aperture Grids, 1.5mm Hole, Aluminum, 25/vial
    • Rim Width: 350-400µm.
      Thickness: 25µm for Mo, and Al
      15µm for Ti
      12µm for Stainless Steel
      Diameter: 3.0 to 3.05mm
      Finish: Being made of thin foils, both sides show same surface
      Packaging: 25 grids/vial
      Pitch: Is 1"/mesh or 25.4mm/mesh
      Example 200 mesh pitch = 25.4/200 = 127µm


      From the drawing above, the hole and bar widths are shown. Sometimes "pitch" is used in this terminology and it is the equivalent of hole width plus bar width

      Material Code
      Alluminum A
      Molybdenum M
      Stainless Steel S
      Titanium T


      PELCO® Grid Size

      Square Mesh Pitch µm Hole µm Bar µm % Transmission
      75 339 284 55 70
      100 254 204 50 65
      200 127 90 37 50
      300 85 54 31 40
      400 64 38 26 35


    • Impurities (ppm) in PELCO® Special Metal Grids

      Element Aluminum Molybdenum Stainless Steel 316 Titanium
      Aluminum 99% <20 - <300
      Calcium - <20 - <20
      Carbon - <40 <1200 <300
      Chromium - <50 <16.5-20% <50
      Copper <1000 <20 - <5
      Hydrogen - <5 - <60
      Iron <7000 <50 balance <1500
      Lead - <30 - -
      Magnesium - <20 - -
      Manganese <1000 - <2% <100
      Molybdenum - 99% 2.0-3.5% <100
      Nickel - - <8-14% <50
      Nitrogen - <10 - <150
      Oxygen - <30 - <2000
      Potassium - <2 - -
      Silicon <5000 <50 - <300
      Tin - - - <200
      Titanium - <30 - balance
      Tungsten - <10 - -
      Zinc <1000 - - -
