Multi Holders for Smaller Diameter Pin Stubs

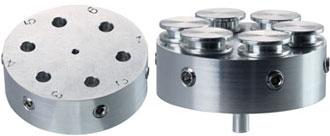

The 25mm diameter holder (#16142-25P) can accommodate up to four Small Diameter Pin Stubs, and the larger 32mm diameter (#16142-32P) holder can accommodate up to six. Ideal for desktop SEMs, where holder size can be limited, to enable loading more samples at once. Shown with and without Small Pins Stubs (Product #16142 Special Small Head Ø9.6mm, pin 8mm length x 3.2mm diameter), which are sold separately.
#16142-25P Dimensions are Ø25 x 10mm (0.98 x 0.39") without pin.
#16142-32P Dimensions are Ø32 x 10mm (1.26 x 0.39") without pin.
Standard Ø3.1mm (1/8") pin with a length of 9.5mm (3/8").
Material: machined aluminum with stainless steel Allen set screws. Allen wrench included.
Screw used is 6-32 x 1/8 Hex Set, SS
