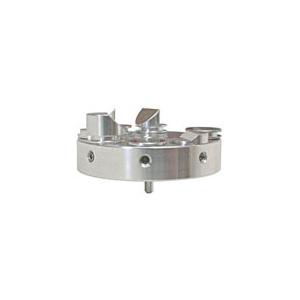

Multi Holder for 8 Pin Stubs

SEM Pin Mount Specimen Holders
for Scanning Electron Microscopy

A large selection of SEM specimen holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8") pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9).
Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs

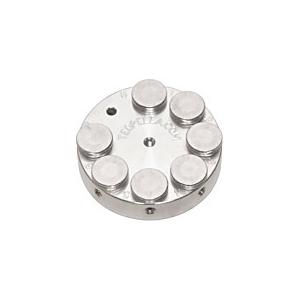

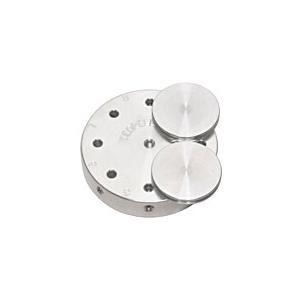

Accommodates up to eight standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin on numbered positions. Can hold up to four 25.4mm (1") pin stubs. Material: machined aluminum with stainless steel allen set screws. Allen wrench included. Holder size is Ø50 x 10.7mm (Ø1.97" x 0.42") height w/o pin.
Screw used is 6-32 x 1/8 Hex Set, SS
Multi Holder for 8 pin stubs
