Interchangeable
Modular SEM Specimen Holders
This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed.
A set of useful holders to quickly mount multiple standard Ø15mm Hitachi mounts with M4 thread on a base with M4 thread. Fully compatible with all Hitachi stage adapters using M4 threads and with all PELCO® Modular Stage Adapters. Available for 3 of 6 Hitachi mounts, flat or with 45° tilt for enhanced signal. Made of aluminum with stainless steel M4 threads. Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397).
Screw used is M4 x 8mm, cup point socket head cap set screw, stainless steel.
15433 - Triple Specimen Holder for 3 Hitachi Mounts, Ø25 x 6mm x M4
Screw used is M4 x 8mm, cup point socket head cap set screw, stainless steel.
15436 - Multiple Specimen Holder for 6 Hitachi Mounts, Ø50 x 6mm x M4
Screw used is M4 x 8mm, cup point socket head cap set screw, stainless steel.

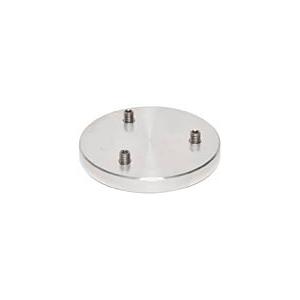

15437 - Multiple Specimen Holder for 3 Hitachi Mounts, Ø50 x 6mm x M4
M4 screw can be rotated for optimum positioning
Screw used is M3 x 3mm, set screw, stainless steel.

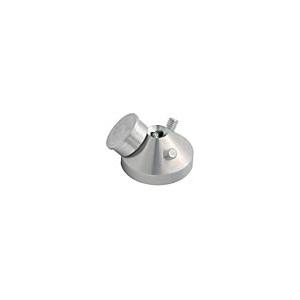

15430-3 - 45° Tilt Triple Specimen Holder for 3 Hitachi Mounts, Ø25 x 14mm x M4
M4 screw can be rotated for optimum positioning
Screw used is M3 x 3mm, set screw, stainless steel.

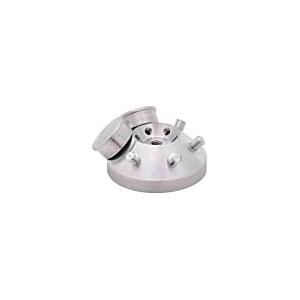

15430-6 - 45° Tilt Multiple Specimen Holder for 6 Hitachi Mounts, Ø35 x 14mm x M4
