GA50

Gilder Aperture Grids

Hole Size
Material

  • The Gilder grids are available in 50 to an unrivalled ultra fine 2000 mesh. The Gilder grids feature well defined grid bars, shiny (smooth) and matt side difference and are packaged in custom anti-static vials. They are made with precision electroplating technologies. An additional feature of the Gilder grids are the rim and center marks to aid in the orientation on the grid and identification of each side. Most Gilder grids have a rim mark and many grids also have center marks. Wide selection of grid styles to support virtually every application with standard diameter of 3.05mm. Available materials are Cu, Ni, Au, Mo and Cu/Pd. Thickness of Nickel grids is typically 35µm ±5µm.

    Packaging:
    Standard Cu, Ni or Cu/Pd, 100 grids/vial except special configurations which are listed accordingly with packaging of 25 or 50 grids/vial.

    Thickness of Nickel grids is typically 35µm ±5µm.
    Thickness of Mo grids is typically 25µm - 50µm.

    Molybdenum is used principally in applications where its hardness, expansion coefficient, high temperature and corrosive resistance characteristics are considered important. Mo typical purity 99.9%, melting point 2617° C (4742.6°F).

    Gilder Aperture - overall thickness variation: GA200: 25µm , ±3µm; GA2000: 50µm , ±5µm

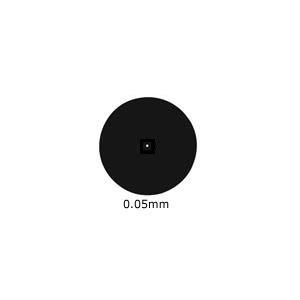

    1. Gilder Aperture Grids, 0.05mm Hole, 3.05mm O.D., Copper, 100/vial
    2. Gilder Aperture Grids, 0.05mm Hole, 3.05mm O.D., Nickel, 100/vial

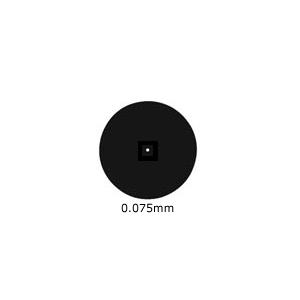

    3. Gilder Aperture Grids, 0.075mm Hole, 3.05mm O.D., Copper, 100/vial
    4. Gilder Aperture Grids, 0.075mm Hole, 3.05mm O.D., Nickel, 100/vial

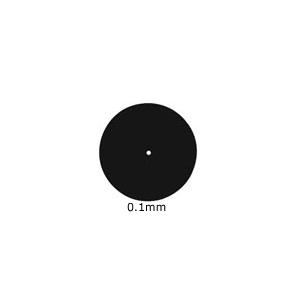

    5. Gilder Aperture Grids, 0.1mm Hole, 3.05mm O.D., Copper, 100/vial
    6. Gilder Aperture Grids, 0.1mm Hole, 3.05mm O.D., Nickel, 100/vial

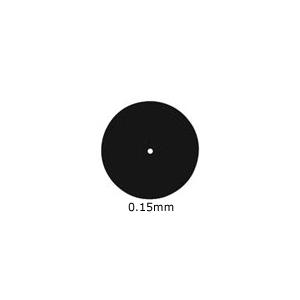

    7. Gilder Aperture Grids, 0.15mm Hole, 3.05mm O.D., Copper, 100/vial
    8. Gilder Aperture Grids, 0.15mm Hole, 3.05mm O.D., Nickel, 100/vial

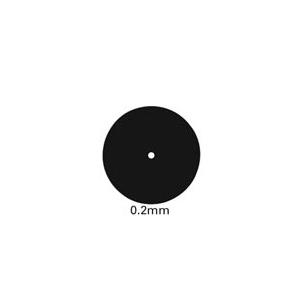

    9. Gilder Aperture Grids, 0.2mm Hole, 3.05mm O.D., Copper, 100/vial
    10. Gilder Aperture Grids, 0.2mm Hole, 3.05mm O.D., Nickel, 100/vial

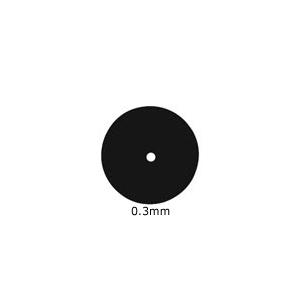

    11. Gilder Aperture Grids, 0.3mm Hole, 3.05mm O.D., Copper, 100/vial
    12. Gilder Aperture Grids, 0.3mm Hole, 3.05mm O.D., Nickel, 100/vial

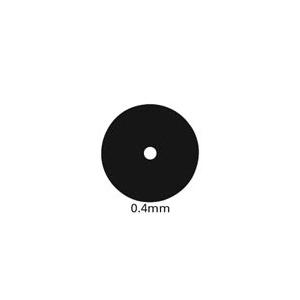

    13. Gilder Aperture Grids, 0.4mm Hole, 3.05mm O.D., Copper, 100/vial
    14. Gilder Aperture Grids, 0.4mm Hole, 3.05mm O.D., Nickel, 100/vial
    15. Gilder Aperture Grids, 0.5mm Hole, 3.05mm O.D., Copper, 100/vial
    16. Gilder Aperture Grids, 0.5mm Hole, 3.05mm O.D., Nickel, 100/vial

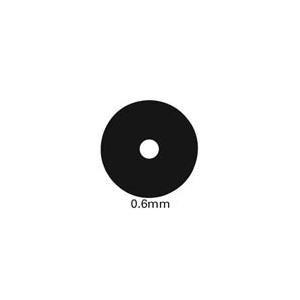

    17. Gilder Aperture Grids, 0.6mm Hole, 3.05mm O.D., Copper, 100/vial
    18. Gilder Aperture Grids, 0.6mm Hole, 3.05mm O.D., Nickel, 100/vial

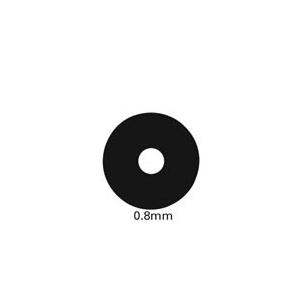

    19. Gilder Aperture Grids, 0.8mm Hole, 3.05mm O.D., Copper, 100/vial
    20. Gilder Aperture Grids, 0.8mm Hole, 3.05mm O.D., Nickel, 100/vial

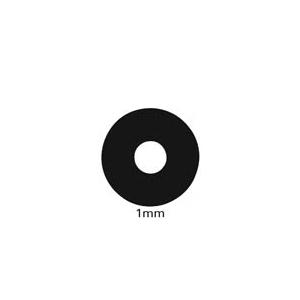

    21. Gilder Aperture Grids, 1.0mm Hole, 3.05mm O.D., Copper, 100/vial
    22. Gilder Aperture Grids, 1.0mm Hole, 3.05mm O.D., Nickel, 100/vial
    23. Gilder Aperture Grids, 1mm Hole, 3.05mm O.D., Molybdenum, 25/vial

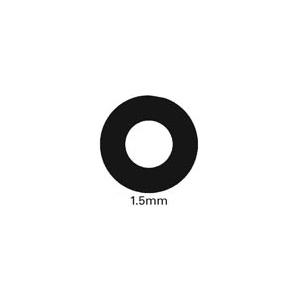

    24. Gilder Aperture Grids, 1.5mm Hole, 3.05mm O.D., Copper, 100/vial
    25. Gilder Aperture Grids, 1.5mm Hole, 3.05mm O.D., Nickel, 100/vial

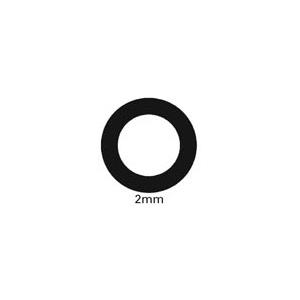

    26. Gilder Aperture Grids, 2.0mm Hole, 3.05mm O.D., Copper, 100/vial
    27. Gilder Aperture Grids, 2.0mm Hole, 3.05mm O.D., Nickel, 100/vial

    Standard Mesh Grids with marks:
    An asymmetrical mark in the rim, shown top. Center mark for quadrant location or older style, “reverse arrow”, bottom.

    Fine Mesh Grids with marks:
    An asymmetrical mark in the rim, shown top. Center mark divides grid into 6 areas, bottom.

    Gilder Standard Square Mesh - overall thickness variation: G50: 25µm , ±5µm; G600TT: 6µm , ±2µm

  • Gilder Grids Size Specifications

    Rim Width: 300-500µm
    Thickness: Square Mesh 6-25µm
    Hex 10-25µm
    Parallel Bar 12-27µm
    Slot 25-60µm
    Aperture 25-50µm
    Diameter: 3.05mm
    Packaging: 100 grids/vial for standard Cu, or Ni grids
    50 grids/vial for Au
    25 grids/vial for Mo
    25/15/10 grids/vial for ultra fine mesh
    Pitch: Is 1"/mesh or 25.4mm/mesh
    Example 200 mesh pitch = 25.4/200 = 127µm

    From the drawing above, the hole and bar widths are shown. Sometimes "pitch" is used in this terminology and it is the equivalent of hole width plus bar width.

    Material Code
    Copper G or GC
    Nickel GN
    Gold GG /G-G, or G-AU
    Copper/Palladium G-CUPD
    Molybdenum G-M

    Square
    Mesh
    Pitch
    µm
    Hole
    Width
    µm
    Bar
    Width
    µm
    % Trans-
    mission
    Mark
    Center Rim
    G50 500 420 80 70 - -
    G75 340 285 55 66 • •
    G100 250 205 45 67 • •
    G100HEX 250 220 30 77 - -
    G150 165 125 40 45 • •
    G150HEX 165 130 35 62 - •
    G200 125 90 35 52 • •
    G200HEX 125 105 20 70 - -
    G200HH 125 113 12 82 - •
    G200HS 125 113 12 82 - •
    G300 83 58 25 49 • •
    G300HS 83 73 10 77 - •
    G300HEX 83 58 25 49 - •
    G300HH 83 73 10 77 - •
    G400 62 37 25 37 • •
    G400HS 62 54 8 76 - •
    G400HEX 62 37 25 36 - •
    G400HH 57 49 8 74 • •
    G400P 62 40 22 65 - •
    G600TT - 30 10/16 - • -
    G600HH 37 29 8 61 • •
    G600HHS 42 37 5 78 - •
    G600HSS 42 37 5 78 - •
    G1000HS 25 19 6 57 - •
    G1000HH 25 19 6 57 - •
    G1500HS 16.5 11.5 5 49 - •
    G1500HH 16.5 10 6 40 - •
    G2000HS 12.5 7.5 5 36 - •
    G2000HA 12.5 6.5 65 41 - •
