Gel-Pak® Membrane Boxes are recommended for devices or large objects that have an irregular shape or non-flat contact surface which will not adhere to our Gel material.

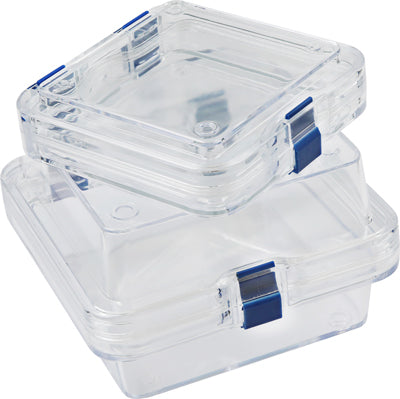

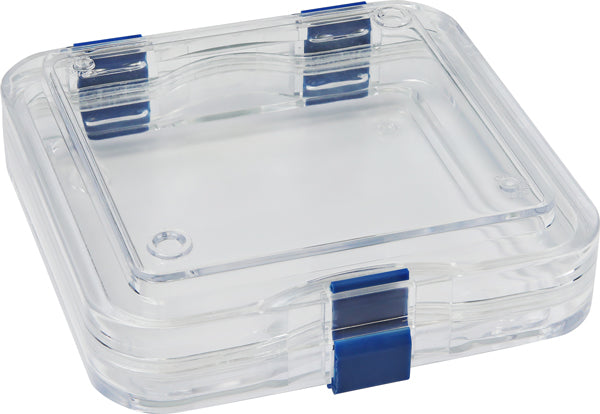

Membrane Boxes are constructed using a thin, highly elastic transparent polyether polyurethane membrane mounted to the top and bottom halves of a symmetrical clear polystyrene box. When the box is closed, the device is suspended between the two transparent membranes which conform to the device shape and securely hold it in place.

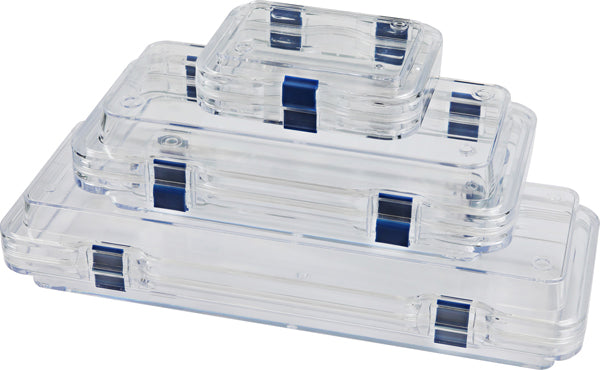

The high optical transparency of the membrane box packaging allows for inspection and visual checks without having to open up the box. The membrane boxes are reusable and come in a wide range of shapes and sizes.
Gel-Pak® Membrane Boxes are manufactured in a Class 10,000 Cleanroom and are shipped in cleanroom packaging.
| Product Number |
Color |
Box Size (External) |
Usable Area (Internal Approximate) |
| MB-38T-16 |
Transparent |
38 x 38 x 16mm |
31 x 31 x 14mm |
| MB-55T-25 |
Transparent |
55 x 55 x 25mm |
42 x 42 x 20mm |
| MB-100T-30 |
Transparent |
100 x 100 x 30mm |
90 x 82 x 25mm |
| MB-100T-50 |
Transparent |
100 x 100 x 50mm |
90 x 82 x 45mm |
|
|
|
|
| MB-100x75T-30 |
Transparent |
100 x 75 x 30mm |
90 x 61 x 25mm |
| MB-125T-50 |
Transparent |
125 x 125 x 50mm |
100 x 100 x 46mm |
| MB-125T-75 |
Transparent |
125 x 125 x 75mm |
97.5 x 97.5 x 70mm |
| MB-125x100T-30 |
Transparent |
125 x 100 x 30mm |
116 x 82 x 25mm |
| MB-150T-100 |
Transparent |
150 x 150 x100mm |
125 x 125 x 95mm |
| MB-200x100T-50 |
Transparent |
200 x 100 x50mm |
188 x 83 x 45mm |
| MB-250x200T-50 |
Transparent |
250 x 200 x 50mm |
223 x 173 x 45mm |
| MB-275x100T-50 |
Transparent |
275 x 100 x 50mm |
245 x 75 x 45mm |
|
| Membrane Physical Properties |
|
Membrane Chemical Properties |
| Property |
Test Method |
Nominal Value |
Waterproof and Breathable |
| Hardness |
ASTM D2240 |
85 Shore A |
Low Temperature Capability to -30ºC |
| Specific Gravity |
ASTM D729 |
1.12 |
No Plasticizer, No Migration |
| Tensile Strength |
ASTM D412 |
445 kg/cm2 |
Simple Molecular Structure: C, H, O, N |
| Elongation |
ASTM D412 |
515% |
Excellent Hydrolysis Resistance: > 2 years |
| 300% Modulus |
ASTM D412 |
80 kg/cm2 |
Excellent Fungus Resistance |
| Tear Strength |
ASTM D1004 |
100 kg/cm2 |
|
| Melting Point |
|
150º C |
| UV Stability |
ASTM D1148 |
4-5 Grade |
|
