PR-EX-CnIR-B-10

$667.00

A 10-pack of probes for contact mode imaging and nanoIR spectroscopic measurements. These probes are pre-mounted on half washer mounts (link 1560-00) specifically for use in Bruker's nanoIR platform.

This contact mode probe features a full wrap gold coating — on the reflex side to enhance feedback laser signal, and on the tip side to enable nanoIR.
General Specifications

Property Nominal Value Minimum Maximum

Tip Radius (nm) 20.0 — 35.0

Frequency (kHz) 13 10 16

Length (µm) 450 430 470

Spring Constant (N/m) 0.2 0.1 0.4

Width (µm) 50 45 55

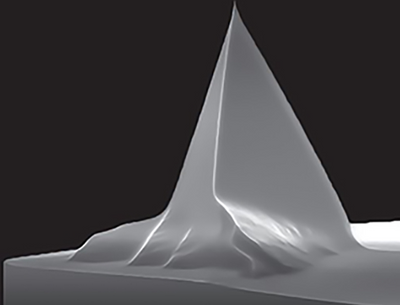

Tip Specifications

Feature Value

Tip Height 12.5 µm

Front Angle 25.0º

Back Angle 15.0º

Side Angle 22.5º

Coating Au (Gold)

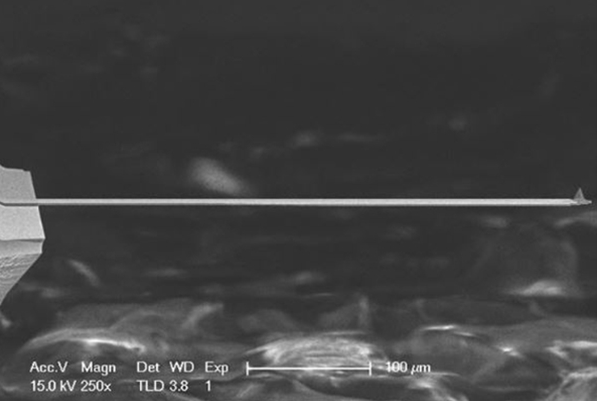

Cantilever Specifications

Feature Value

Material Antimony (n) doped Si (0.010–0.025 Ω·cm)

Geometry Rectangular

Number of Cantilevers 1

Thickness (Nominal) 2.0 µm

Back Side Coating Au (Gold), 50 nm

Property	Nominal Value	Minimum	Maximum
Tip Radius (nm)	20.0	—	35.0
Frequency (kHz)	13	10	16
Length (µm)	450	430	470
Spring Constant (N/m)	0.2	0.1	0.4
Width (µm)	50	45	55
