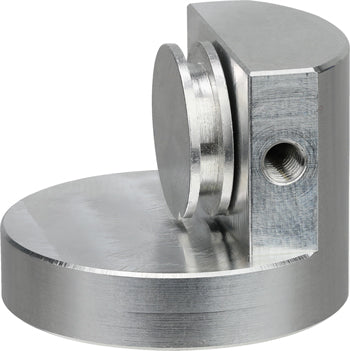

90° Pin Stub Holder, M4

90° Cross Section Pin Stub

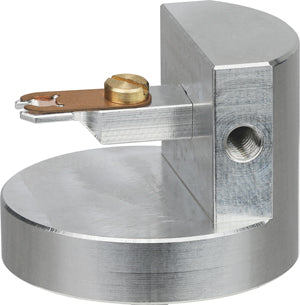

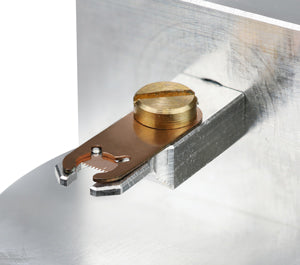

Intended for cross-section work and planar FIB applications, this holder accepts standard 12.7mm (1/2") pin stubs with 3.2mm (1/8") pin and other 12.7mm (1/2") pin stub holders such as 15463-10, 15464, 15294 and others. Made of machined aluminum with stainless steel Allen set screw. Allen wrench included.
Holder size is Ø25mm, height 19mm (0.984 x 0.75").

Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397).
Screw used is M3 x 6mm, stainless steel set screw.
