PR-EX-TnIR-A-10
10 pack of probes for use in the nanoIR2/2S/2FS systems for AFM imaging in Tapping mode and IR spectral collection in contact mode.
Also required for Tapping AFM-IR chemical imaging where the feature is available.
Gold coated, microfabricated silicon probes that are ~225 microns long and come pre-mounted on half washer mounts for easy exchange in the AFM head.
If 5 or more 10 packs of this probe are purchased at the same time then a 10% discount is applied to this line item.

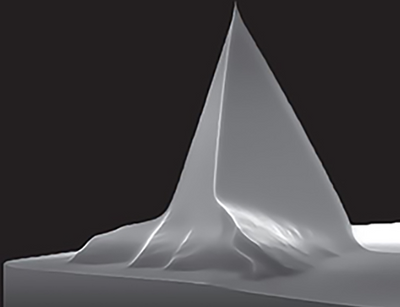

| Shape: | Rotated |
| Height: | 17 μm - (15 - 19 μm)* |
| Setback: | 15 μm - (10 - 20 μm)* |
| Radius: | < 25 nm |
| Half Cone Angle: | 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex |
| Coating: | Overall gold coating, 70 nm thick |

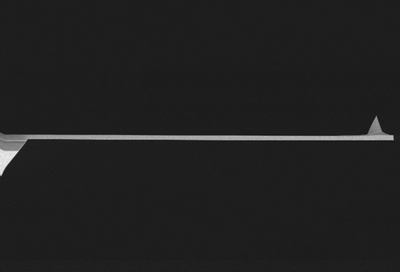

| Shape: | Beam |
| Force Constant: | 3 N/m (1 - 7 N/m)* |
| Resonance Frequency: | 75 kHz (60 - 90 kHz)* |
| Length: | 225 μm (215 - 235 μm)* |
| Width: | 28 μm (23 - 33 μm)* |
| Thickness: | 3 μm (2 - 4 μm)* |
