520
Use this system for picking up delicate lightweight material with finger controlled vacuum. Attach various hollow needle tips (5 with system) or rubber cups (3 with system) onto the pick-up pen.

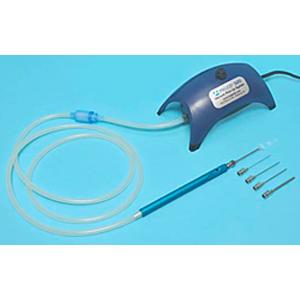

Vacuum Pick-Up System including pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.14" and 0.4"), in-line filter and hose. Needle tips length is 39mm (1.53").

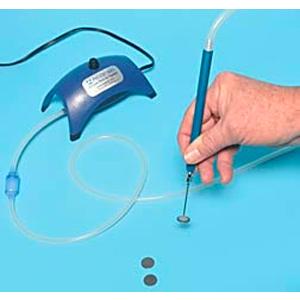

Use easy finger control for picking up or releasing.
Not for wet or corrosive materials.
Comes with an on/off switch on top of cabinet.PELCO® Technical Notes, Vacuum Pick-Up System
Note: The Pen-Vac™ probes are interchangeable with the PELCO® Vacuum Pick-Up probes
The 520 PELCO® Vacuum Pick-Up System has a vacuum spec of 8" Hg. This equates to a suction force of 2.75g/mm2. Compensating for cup deformation and leakage, we have determined the practical lifting capacity for the cups and tips as:
|
Practical Lifting Capacity
|
||||
| Cup or Tip Prod. No. |
Cup or Tip Size |
O.D. Size in mm |
I.D. Size in mm |
Lifting Capacity in g |
| 520-4 | Vac Cup 0.4" | 10.2 | - | 70 |
| 520-5 | Vac Cup 0.25" | 6.4 | - | 35 |
| 520-6 | Vac Cup 0.14 | 3.6 | - | 10 |
| 520-7 | Tip, 12 gauge | 2.77 | 2.36 | 5 |
| 520-8 | Tip, 16 gauge | 1.65 | 1.18 | 1 |
| 520-9 | Tip, 18 gauge | 1.27 | 0.80 | 0.5 |
| 520-10 | Tip, 20 gauge | 0.9 | 0.56 | 0.3 |
| 520-11 | Tip, 25 gauge | 0.52 | 0.24 | 0.05 |
Complete System: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.14" and 0.4"), in-line filter and hose. Needle tips length is 39mm (1.53").
