Use this system for picking up delicate lightweight material with finger controlled vacuum. Attach various hollow needle tips (5 with system) or rubber cups (3 with system) onto the pick-up pen.

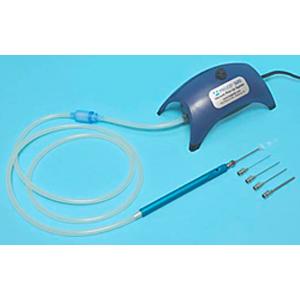

Vacuum Pick-Up System including pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.14" and 0.4"), in-line filter and hose. Needle tips length is 39mm (1.53").

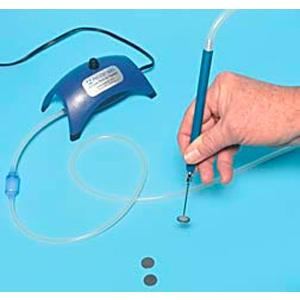

Use easy finger control for picking up or releasing.
Not for wet or corrosive materials.
Comes with an on/off switch on top of cabinet.PELCO® Technical Notes, Vacuum Pick-Up System
Note: The Pen-Vac™ probes are interchangeable with the PELCO® Vacuum Pick-Up probes
The 520 PELCO® Vacuum Pick-Up System has a vacuum spec of 8" Hg. This equates to a suction force of 2.75g/mm2. Compensating for cup deformation and leakage, we have determined the practical lifting capacity for the cups and tips as:
Practical Lifting Capacity | ||||
| Cup or Tip Prod. No. |
Cup or Tip Size |
O.D. Size in mm |
I.D. Size in mm |
Lifting Capacity in g |
| 520-4 | Vac Cup 0.4" | 10.2 | - | 70 |
| 520-5 | Vac Cup 0.25" | 6.4 | - | 35 |
| 520-6 | Vac Cup 0.14 | 3.6 | - | 10 |
| 520-7 | Tip, 12 gauge | 2.77 | 2.36 | 5 |
| 520-8 | Tip, 16 gauge | 1.65 | 1.18 | 1 |
| 520-9 | Tip, 18 gauge | 1.27 | 0.80 | 0.5 |
| 520-10 | Tip, 20 gauge | 0.9 | 0.56 | 0.3 |
| 520-11 | Tip, 25 gauge | 0.52 | 0.24 | 0.05 |
Complete System: pump, finger control pen, five interchangeable needle tips (12, 16, 18, 20 and 25 gauge), 3 each clear silicone rubber vacuum cups (0.25", 0.14" and 0.4"), in-line filter and hose. Needle tips length is 39mm (1.53").
