Interchangeable
Modular SEM Specimen Holders
This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed.
Square PELCO® Q Multi Pin Stub Holders with M4 threaded mounting hole enable easier location of the pin stubs with X-Y stage movements. The 4 and 8 stub holders use M3 set screws to secure pin stubs. The 16, 24, 36 and 48 stub holders have a unique spring assisted holding design to securely hold pin stubs. They have a notch for indexing and lines for alignment when using the square PELCO® Q Pin Stubs. Available for 4, 8, 16, 24, 36 and 48 of the 12.7mm (1/2") pin stubs. The multi holders for 8 or more pin stubs are also compatible with a lower number of 25.4mm (1") pin stubs or a mixture of 12.7 and 25.4mm pin stubs.

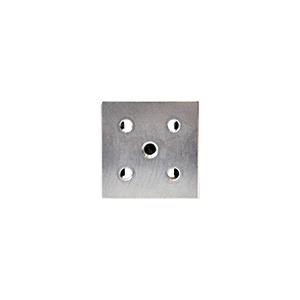

15334-4-22 - PELCO® Multi Pin Stub Holder for 4 ea 12.7mm (1/2") pin stubs, M4, 29 x 29 x 10mm
15334-4-33 - PELCO® Multi Pin Stub Holder for 8 ea 12.7mm (1/2") Pin Stubs, M4, 43 x 43 x 10mm

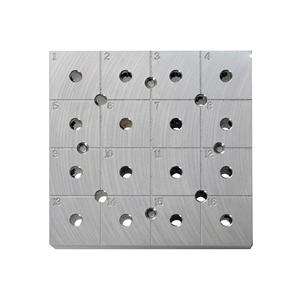

15334-4-44 - PELCO® Multi Pin Stub Holder for 16 ea 12.7mm (1/2") or 4 ea 25mm (1") Pin Stubs, M4, 57 x 57 x 10mm
15334-4-55 - PELCO® Multi Pin Stub Holder for 24 ea 12.7mm (1/2") Pin Stubs, M4, 71 x 71 x 10mm
15334-4-66 - PELCO® Multi Pin Stub Holder for 36 ea 12.7mm (1/2") or 9 ea 25mm (1") Pin Stubs, M4, 85 x 85 x 10mm
15334-4-77 - PELCO® Multi Pin Stub Holder for 48 ea 12.7mm (1/2") Pin Stubs, M4, 99 x 99 x 10mm
