SEM Pin Mount Specimen Holders
for Scanning Electron Microscopy
A large selection of SEM specimen holders for SEMs, FESEMs, and FIB systems, which are using the standard 3.2mm (1/8") pin type mount. Some of the larger holders require a larger specimen chamber and a larger stage. Depending on the available distance, Z-movement and maximum specimen height provided by the specimen stage in the SEM, pin stub extenders might be added to obtain the optimized working height. See Hitachi M4 Holders if you have a Hitachi SEM, FESEM, or FIB system. These specimen holders can also be used on JEOL SEMs if a pin mount adapter to JEOL cylinder mount is used (#15362, #15362-12, #15362-15, #16153-9, or #16216-9).
Used on FEI/Philips, ZEISS, LEO, Leica, Cambridge Instruments, CamScan and Tescan SEMs

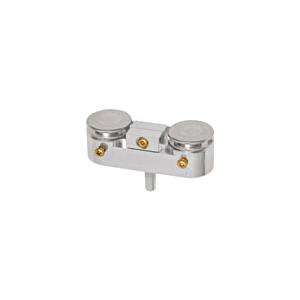

The PELCO® Double FIB Sample and Grid Holder holds FIB samples mounted on two standard 1/2" (12.7mm) pin stubs for FIB milling and lift-out procedures. It also holds two FIB grids of the same thickness conveniently close to the sample to mount prepared TEM lamellae on the FIB grid for subsequent TEM imaging.
There are two height options: standard and low profile. The standard height comes with two #16111 pin stubs and the pin length of the mount is 9.5mm (3/8") while the low profile comes with two #16176 pin stubs and the pin length of the mount is 6.5mm (1/4"). The low profile holder is primarily for systems that require shorter pin mounts and/or sample heights. Compact and cost effective holder suitable for all FIB/SEM systems which accept pin mount holders, such as the Thermo Fisher/FEI, ZEISS and TESCAN systems. For the JEOL and Hitachi systems a pin mount adapter is needed.
The standard height (#15468) is made of vacuum grade aluminum with brass screws. Philips screwdriver #0 included. Overall size is 36.5 x 12.7 x 11.6mm (1.44 x 0.5 x 0.46"). Pin is 3.2mm (1/8") diameter x 9.5mm (3/8") length.
The low profile (#15488) is made of vacuum grade aluminum with stainless steel screws. Hex key is included. Overall size of #15488 (excluding pin height) is 36.5 x 12.7 x 7mm (1.44 x 0.5 x 0.28") . Pin is 3.2mm (1/8") diameter x 6.5mm (1/4") length.
15468 - PELCO® Double 1/2" FIB Sample and Grid Holder, Pin, each
15464-20 - Replacement Brass Screws, pkg/10
15488 - Low Profile PELCO® Double 1/2" FIB Sample and Grid Holder, Pin
