    1GC50

    PELCO® 50 Mesh Grids

    $45.30
    Style
    Material

    • 50: Pitch 508µm; Hole Width 425µm; Bar Width 83µm; Transmission 70%

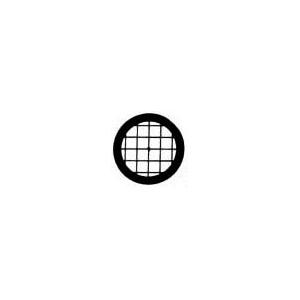

      1. PELCO® Center-Marked Grids, 50 mesh, 3.0mm O.D., Copper, 100/vial
      2. PELCO® Center-Marked Grids, 50 mesh, 3.0mm O.D., Nickel, 100/vial
      3. PELCO® Center-Marked Grids, 50 mesh, 3.0mm O.D., Gold, 25/vial
      50: Pitch 508µm; Hole Width 425µm; Bar Width 83µm; Transmission 70%
      Tabbed

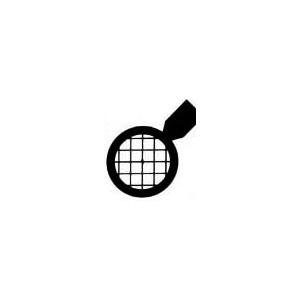

      1. PELCO® Tabbed Center-Marked Grids, 50 mesh, 3.0mm O.D., Copper, 100/vial

      Slotted

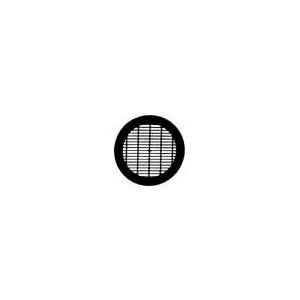

      1. PELCO® Slotted Mesh, 50/200, Center-Marked Grids, 3.0mm O.D., Copper, 100/vial

      Folding

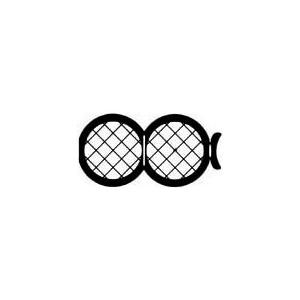

      1. PELCO® Folding Grids, 50-50 mesh, Center-Marked One Side, Copper, 100/vial

      The PELCO® Grids are usually somewhat thicker than similar TEM grids made by electro plating processes which makes them stiffer and easier to handle without the danger of bending, but still maintain a good definition of the grid bars. The wide rims (350-400µm) on the PELCO® Grids provide additional stiffness and minimize the potential of interfering with the sample when picking up and handling the grids with tweezers. The popular PELCO® Grids were introduced 45 years ago and have found a large user base in all disciplines of TEM. The grids have a shiny (smooth) finish on one side and matte (rough) or dull finish on the other side. Grids have all been inspected before packaging. A comprehensive selection of different grid styles is offered with the standard outside diameter of 3.05mm. Styles available are Square Mesh, Hexagonal (honeycomb) Mesh, Double Folding Grids, Slotted Mesh, Tabbed Grids, Slotted or Round Hole. Available materials are Cu, Ni and Au.

      Packaging: Standard Cu grids 100grids/vial, except specials which are listed accordingly. Gold is packaged 25grids/vial.

    • Rim Width: 350-400µm.
      Thickness: PELCO® Grids are approximately 25µm thick.
      Diameter: 3.0 to 3.05mm
      Finish: Copper, Nickel and Gold grids have a matte finish on one side and a shiny finish on the other side.
      Packaging: 100 grids per vial/tube, except for specials which are listed accordingly. Gold, Titanium, Stainless Steel, Molybdenum and Aluminum grids are packaged in 25's
      Pitch: Is 1"/mesh or 25.4mm/mesh
      Example 200 mesh pitch = 25.4/200 = 127µm



      From the drawing above, the hole and bar widths are shown. Sometimes "pitch" is used in this terminology and it is the equivalent of hole width plus bar width.

      Material Code
      Copper C
      Nickel N
      Gold G
      Aluminum A
      Molybdenum M
      Titanium T
      Stainless Steel S


      PELCO® Grid Size

      Square Mesh Pitch µm Hole µm Bar µm % Transmission
      50 508 425 83 70
      75 339 284 55 70
      100 254 204 50 65
      200 127 90 73 50
      200 EOA 127 106 21 69
      300 85 54 31 40
      400 64 38 26 35
      400 EOA 64 45 19 48
      500 51 28 23 30
