    Multi75Al-G-10

    Multi75Al-G

    $369.40
    Select Quantity
    Standard Force Modulation AFM Probe

    • Standard Force Modulation AFM Probe

      Monolithic silicon AFM probe for force modulation and pulsed force mode (PFM).

      The rotated tip allows for more symmetric representation of high sample features. The consistent tip radius ensures good resolution and reproducibility.

      The AFM holder chip fits most commercial AFM systems as it is industry standard size.

      For measurements in liquids please use the back side gold coated Multi75GD-G or the overall gold coated Multi75GB-G!

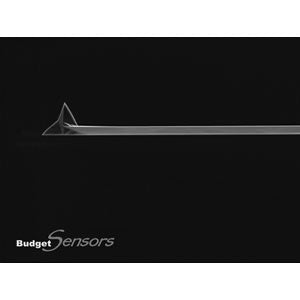

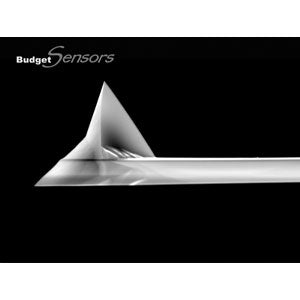

    • AFM Tip

      SHAPE Rotated
      Tip Height 17µm
      From 15µm To 19µm
      Tip Setback 15µm
      From 10µm To 20µm
      Tip Radius < 10nm
      Half Cone Angle 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex

    • AFM Cantilever

      Shape Beam
      Force Constant 3N/m - From 1N/m To 7N/m
      Resonance Frequency 75kHz - From 60kHz To 90kHz
      Length 225µm - From 215µm To 235µm
      Width 28µm - From 23µm To 33µm
      Thickness 3µm - From 2µm To 4µm
