Multi Holder for 12 Pin Stubs

Interchangeable
Modular SEM Specimen Holders

This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed.

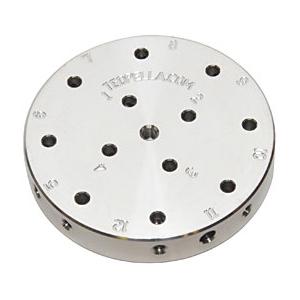

Multi Holder for 12 Pin Stubs, M4

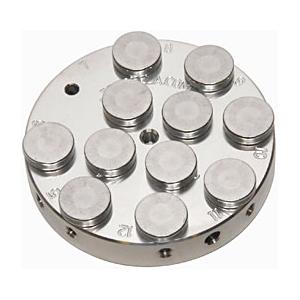

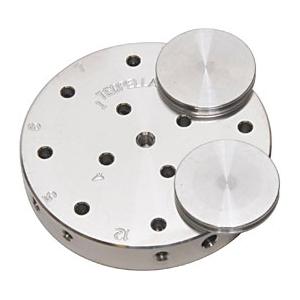

Accommodates up to twelve standard 12.7mm (1/2") pin stubs with 3.2mm (1/8) pin. Can hold up to four 25.4mm (1") pin stubs. Made of aluminum with stainless steel set screws. Allen wrench included.

Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397).

Holder size is Ø62 x 10.7mm (Ø2.44" x 0.42").
