    Transmission Electron Microscopy (TEM) is a high-resolution imaging technique in which a beam of electrons passes through a thin sample to produce an image. The electron beam is impacted by the sample's thickness/density, composition, and, in some case, crystallinity. The electrons that are transmitted through the specimen subsequently provide contrast in the resulting image, revealing high-resolution compositional information.

    Products

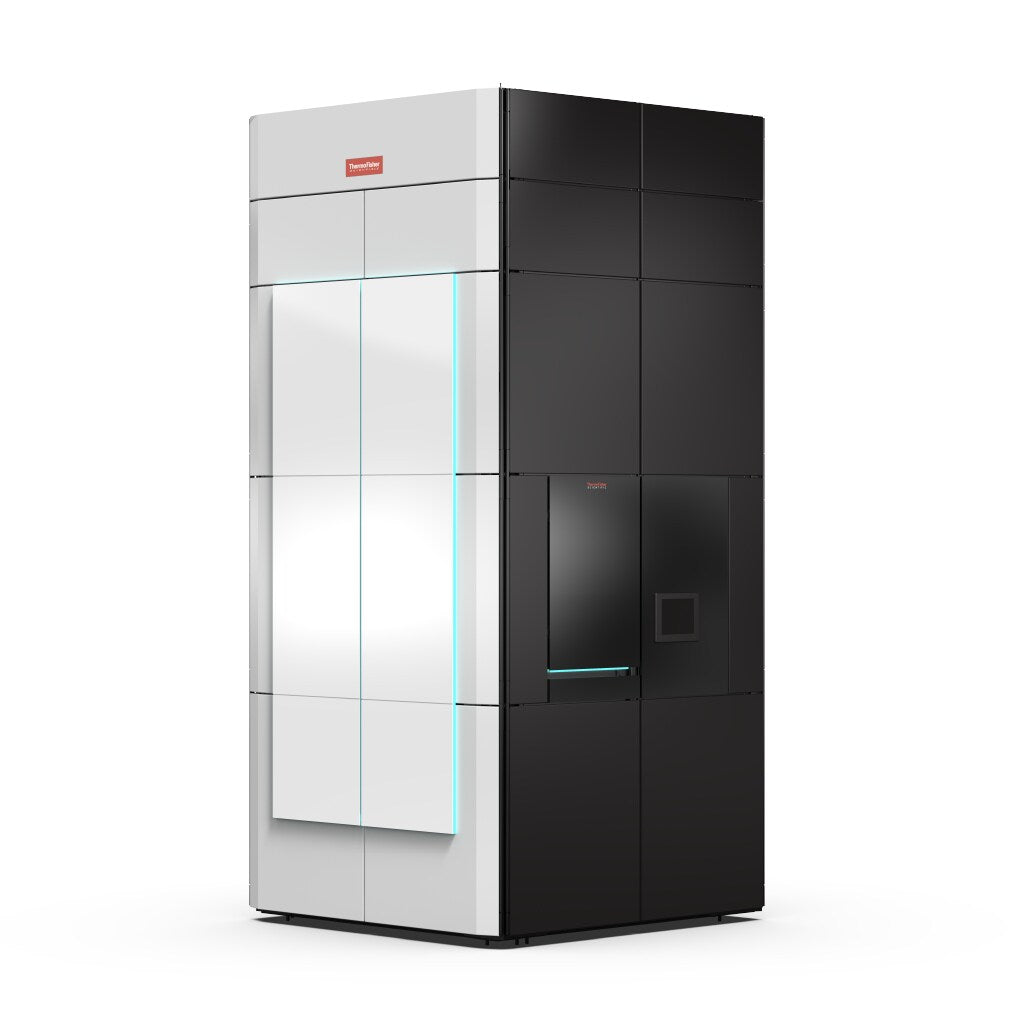

    Iliad (S)TEM
    • Integrated Iliad EELS Spectrometer and Energy Filter for advanced spectroscopy.
    • NanoPulser electrostatic beam blanker enabling dose optimization and time-resolved experiments.
    • Live high-tension switching between 30–300 kV for flexible experimental conditions.
    • Velox Software for seamless multimodal data acquisition and processing.
    • AutoScript TEM Software for Python-based automation and AI-driven workflows.
    Request More Information

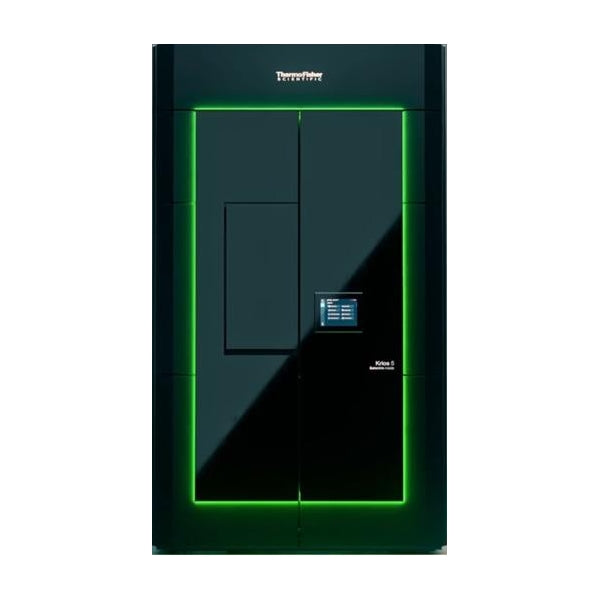

    Krios 5 Cryo-TEM
    • 300 kV cryo-transmission electron microscope for atomic-resolution cryo-EM.
    • AI-powered Smart EPU software for automated grid screening and data management.
    • Extended aberration-free image shift (AFIS) for faster multigrid data collection.
    • CryoTomo Software Suite with on-the-fly motion correction and 8K EER decoding.
    • Energy-saving Eco modes and ACT Ecolabel for sustainable operation
    Request More Information

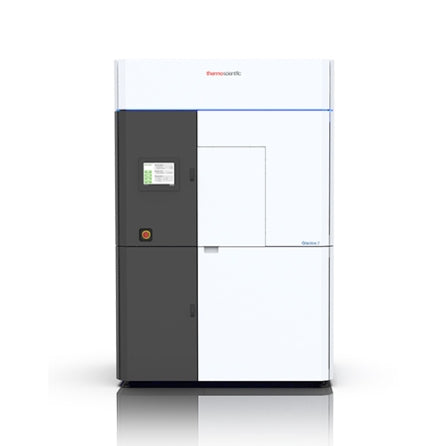

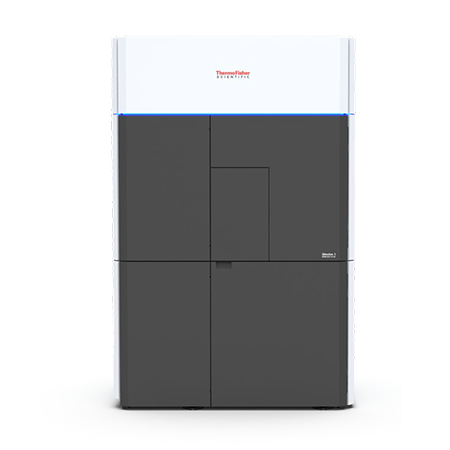

    Glacios 2 Cryo-TEM
    • 200 kV cryo-TEM platform for near-atomic resolution across SPA, cryo-ET, and MicroED workflows.
    • Integrated Falcon 4i Direct Electron Detector for highspeed, high-DQE image acquisition.
    • Smart EPU software with AI-driven automation for streamlined setup and real-time feedback.
    • Selectris X Imaging Filter and optional E-CFEG for enhanced contrast and sub-2 Å resolution.
    • Compact enclosure design minimizing environmental interference for stable, high-throughput operation.
    Request More Information

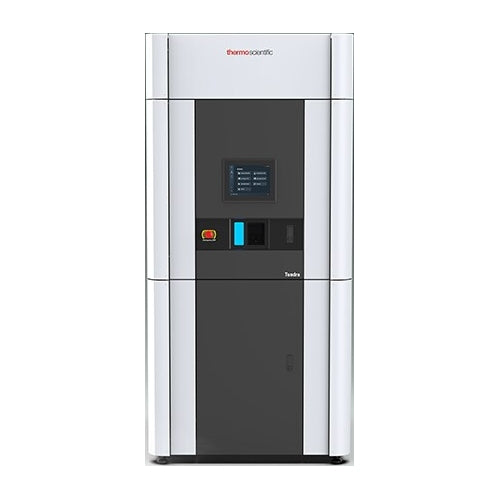

    Tundra Cryo-TEM
    • 100 kV cryo-transmission electron microscope for structural analysis at biologically relevant resolutions.
    • Falcon C Direct Electron Detector enabling highcontrast imaging down to ~2.1 Å resolution.
    • AI-guided automation software for real-time feedback and streamlined data collection workflows.
    • Semi-automated loader system for rapid sample exchange and contamination-free handling.
    • Compact design with simplified operation, making cryo-EM accessible for new and experienced users.
    Request More Information

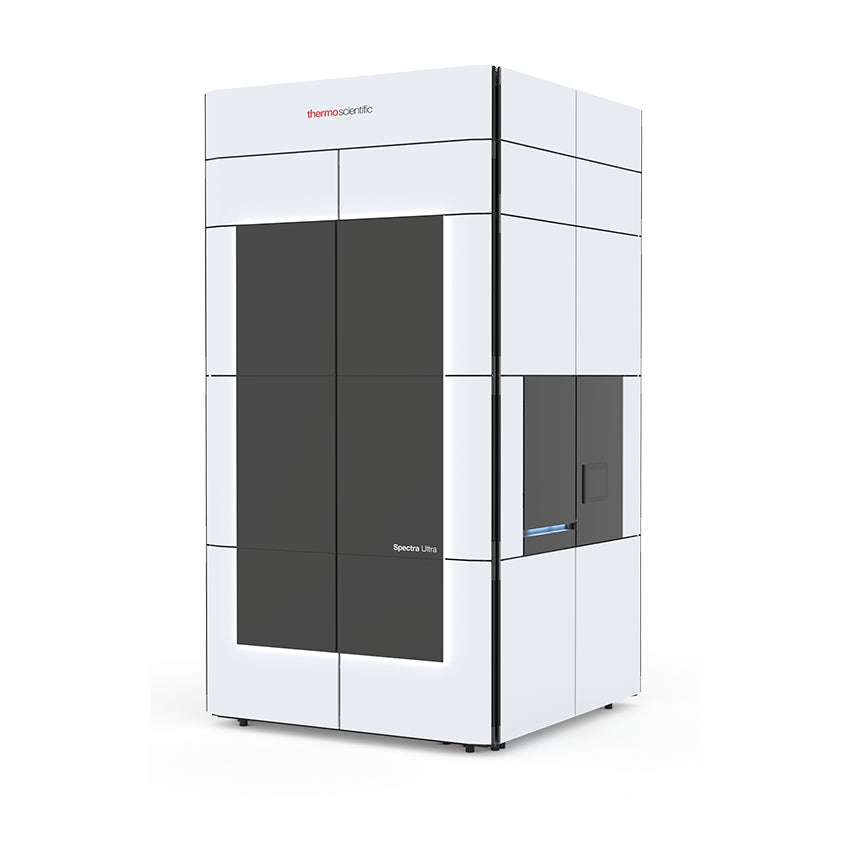

    Spectra Ultra (S)TEM
    • Fast high-tension switching between 30–300 kV for optimized imaging and spectroscopy.
    • Ultra-X EDX detector with >4.45 sr solid angle for low-dose chemical analysis of beam-sensitive materials.
    • Damage mitigation through voltage switching and advanced EDX for reduced knock-on effects.
    • In situ and dynamic research enabled by wide-gap S-TWIN lens, fast cameras, and smart software.
    • Automation routines like OptiSTEM+ and OptiMono+ for highly repeatable, quantifiable data.
    Request More Information

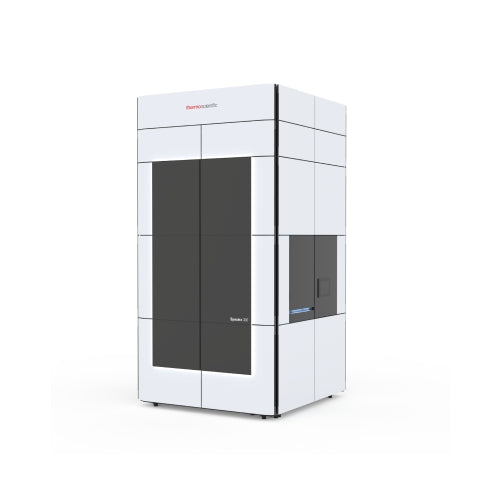

    Spectra 300 (S)TEM
    • Accelerating voltage range of 30–300 kV for flexible imaging and spectroscopy across materials.
    • Ultra-high-resolution optics with fifth-order probe aberration correction (S-CORR).
    • Multiple electron source options (X-FEG Mono/UltiMono or X-CFEG) for high brightness and energy resolution.
    • Wide-gap S-TWIN pole piece enabling in situ experiments and large tilt angles without compromising resolution.
    • Advanced automation with OptiSTEM+ and OptiMono+ software.
    Request More Information

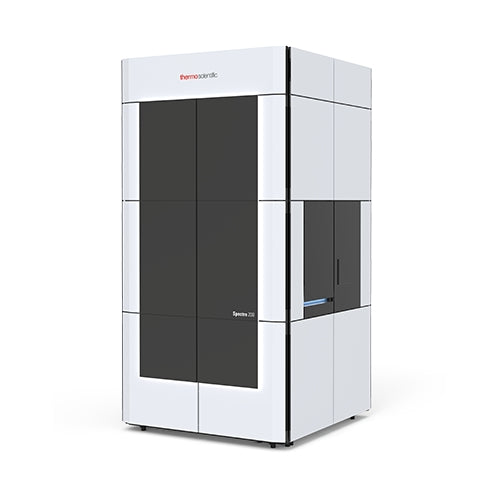

    Spectra 200 (S)TEM
    • Ultra-high-brightness X-CFEG source for highresolution STEM imaging and fast analytics.
    • S-CORR probe aberration corrector enabling sub-angstrom resolution from 60–200 kV.
    • Wide-gap S-TWIN/X-TWIN lens design for in situ experiments without compromising resolution.
    • Integrated EDS and EELS detection systems for simultaneous chemical and structural analysis.
    • Advanced automation routines like OptiSTEM+ for repeatable, quantifiable high-resolution data.
    Request More Information

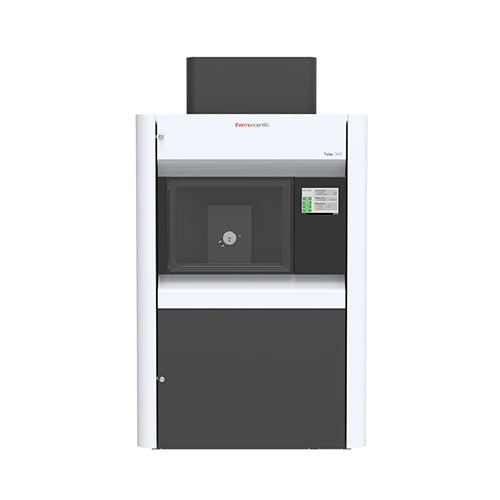

    Talos F200S TEM
    • High-resolution TEM and STEM imaging combined with rapid, quantitative EDS analysis.
    • Integrated Velox Software for fast, intuitive acquisition and multimodal data analysis.
    • Dual in-column Super-X SDD detectors enabling precise chemical composition mapping.
    • Smart scanning engine with multi-channel STEM detection for improved image quality.
    • Enhanced environmental stability with instrument enclosure and full remote operation.
    Request More Information

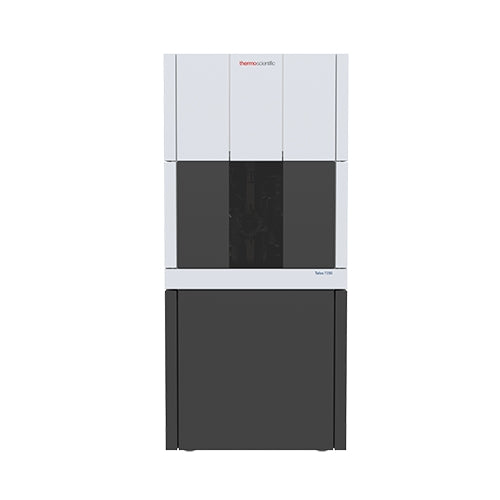

    Talos F200i TEM
    • 20–200 kV field emission (S)TEM for high-resolution 2D/3D imaging and diffraction applications.
    • Standard X-Twin pole piece gap enabling flexible in situ experiments and tomography workflows.
    • Ultra-high brightness FEG options (S-FEG, X-FEG, XCFEG) for superior imaging and energy resolution.
    • Dual-X EDS configuration with up to 100 mm² detectors for fast, accurate chemical analysis.
    • Integrated Velox software and Align Genie
      automation for streamlined operation and
      reproducible results.
    Request More Information

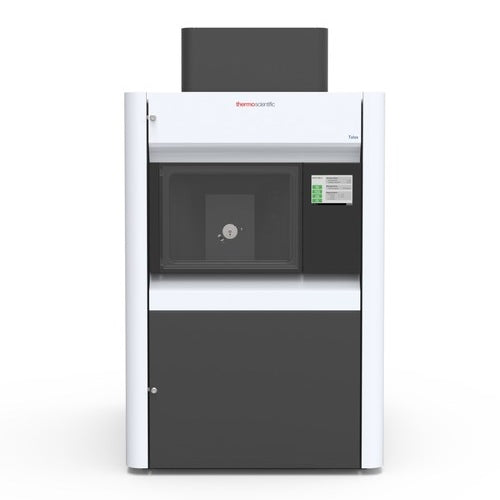

    Talos F200E TEM
    • High-resolution STEM and TEM imaging with minimal distortion for semiconductor analysis.
    • Rapid, precise EDS acquisition and integrated EELS for comprehensive chemical characterization.
    • Simultaneous multi-signal detection with contrastoptimized imaging and live TEM image rotation.
    • Advanced semiconductor-specific features like iDPC imaging, STEM field-of-view matching, and driftcorrected
      frame integration.
    • Velox Software for streamlined workflows and instant EDS map quantification with Super-X or Dual-X detector options.
    Request More Information

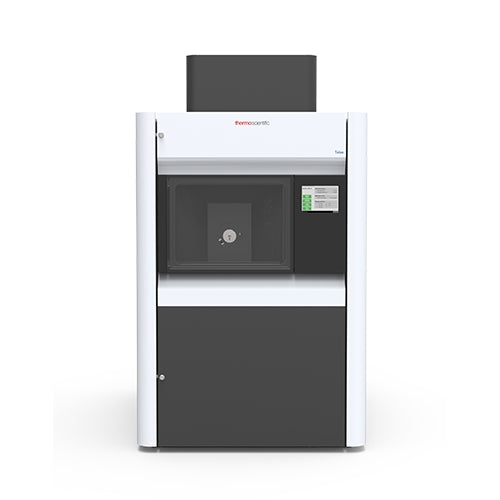

    Talos F200X TEM
    • High-resolution TEM and STEM imaging combined with industry-leading Super-X™ EDS detection.
    • 4 in-column SDD detectors enabling fast, clean 2D/3D compositional mapping and quantitative characterization.
    • Wide X-TWIN pole piece gap for flexible in situ experiments, tomography, and diffraction applications.
    • Integrated Velox™ software with automated workflows like Align Genie.
    • Available with high-brightness X-FEG or ultra-high brightness X-CFEG for superior imaging and energy resolution.
    Request More Information

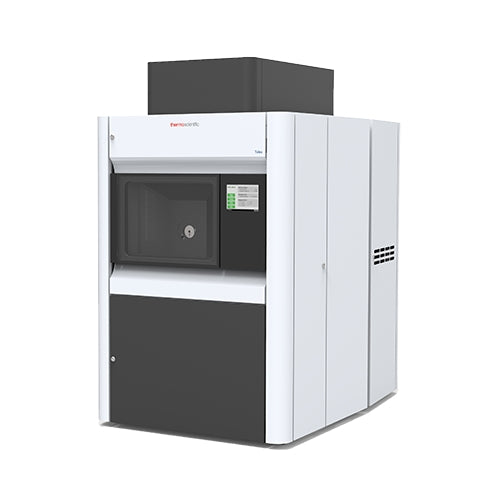

    Talos F200C TEM
    • 20–200 kV thermionic (S)TEM for high-contrast imaging of beam-sensitive materials.
    • Large C-Twin pole piece gap enabling flexible applications like 3D tomography, in situ observations, and diffraction.
    • Optional motorized retractable cryo-box and lowdose techniques for superior cryo-TEM performance.
    • Integrated 4k × 4k Ceta 16M camera for fast imaging with large field-of-view and high sensitivity.
    • Thermo Scientific Maps Software for automated largearea image stitching and correlative workflows across TEM, SEM, and light microscopy.
    Request More Information

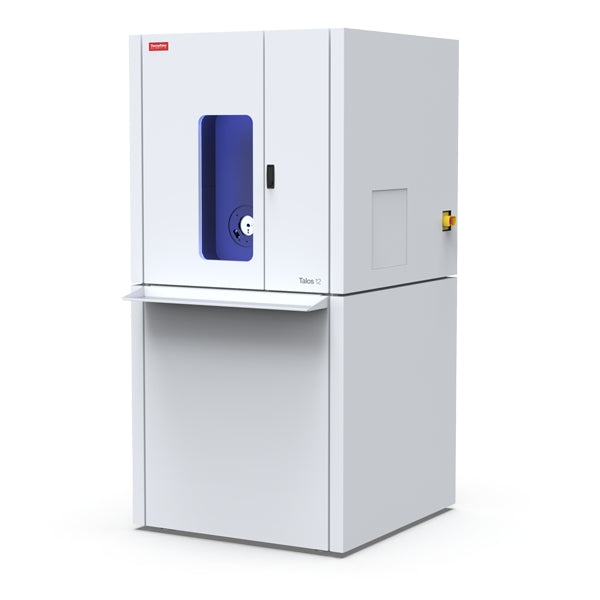

    Talos 12 TEM
    • Proven 120 kV TEM performance with constant-power objective lens for high optical stability.
    • Integrated Ceta CMOS camera and STEM detectors for high-contrast imaging and fast acquisition.
    • Modular design supporting TEM, STEM, EDS, and entry-level cryo-EM applications for versatile workflows.
    • User-friendly Velox and Maps 3 software enabling automated large-area imaging and remote operation.
    • Robust enclosure with improved accessibility and long-duration dewar for extended unattended sessions.
    Request More Information

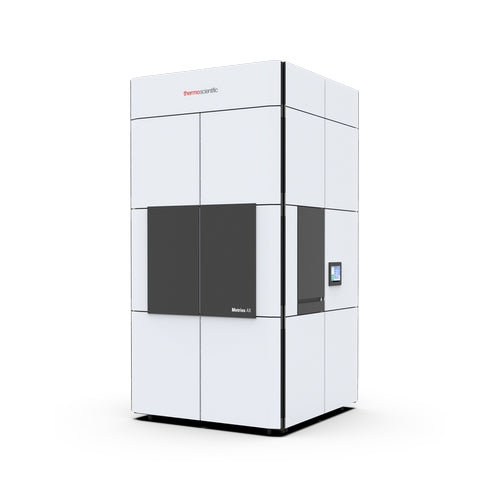

    Metrios AX TEM
    • Fully automated TEM and STEM workflows for high-volume semiconductor metrology.
    • Metrology accuracy below 0.75% combined error in distortion and magnification calibration.
    • Smart Automation software with machinelearning algorithms for recipe-free operation.
    • Integrated Ultra-X EDS detector and hybrid metrology for fast elemental analysis.
    • Smart Stage with piezo-driven tilt for precise ROI navigation and improved throughput.
    Request More Information

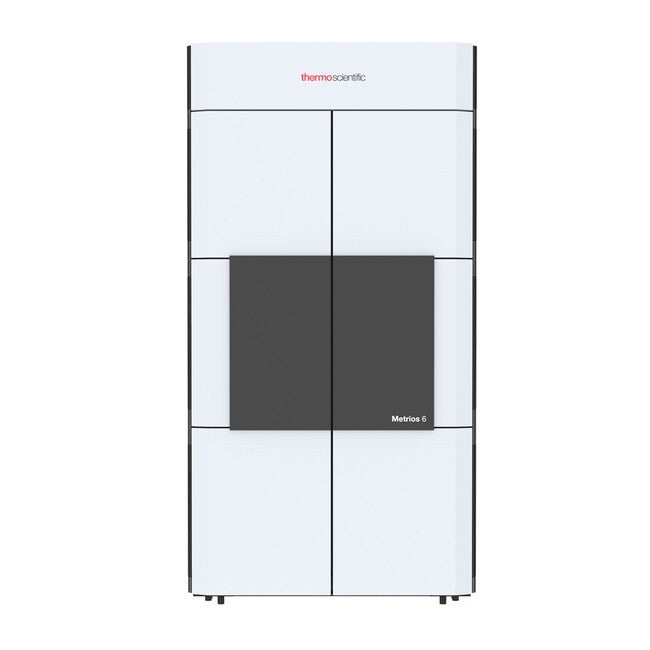

    Metrios 6 (S)TEM
    • Fully automated TEM and STEM metrology workflows for high-volume semiconductor
      manufacturing.
    • Smart Automation software with machine-learning algorithms.
    • Ultra-X EDS detection system delivering 2× faster elemental analysis and improved performance.
    • Newly designed Smart Stage with piezo-driven tilt.
    • High-brightness X-CFEG source and constant power lenses enabling rapid voltage switching.
    Request More Information

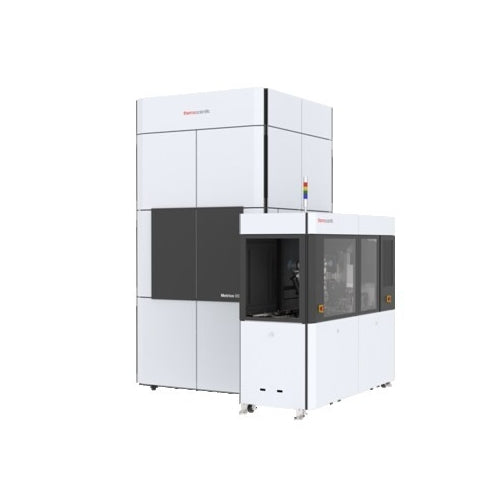

    Metrios 6S (S)TEM
    • Fully automated TEM imaging and metrology workflows.
    • Integration with Vulcan Automated Lab for SEMIstandard-compliant TEM grid handling and seamless host connectivity.
    • Smart Automation software with recipe-free operation and advanced AI algorithms.
    • Ultra-X EDS detector delivering at least 2× faster elemental analysis.
    • Piezo-driven Smart Stage combined with automated TEM grid transfer.
    Request More Information

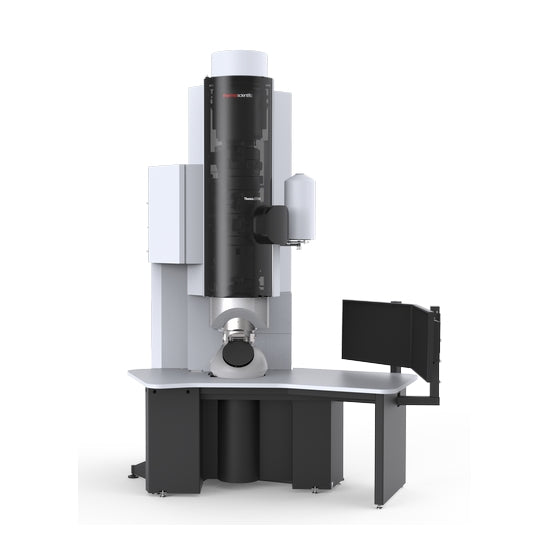

    Themis ETEM
    • Fully integrated TEM/STEM platform with dedicated environmental TEM mode.
    • NanoEx-i/v heating stage enabling precise sample temperature control.
    • Piezo-enhanced stage with drift correction across x, y, and z axes for improved sample stability.
    • Advanced imaging and movie acquisition system combining high sensitivity, large field of view, and high dynamic range.
    • Built-in gas analysis via mass spectrometer, plasma cleaning system, and automated vacuum switching.
    Request More Information

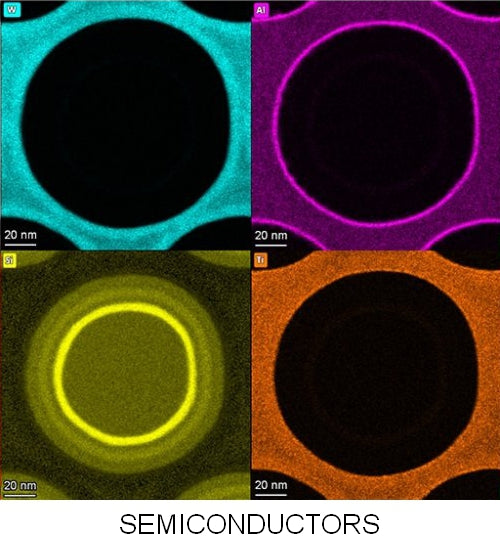

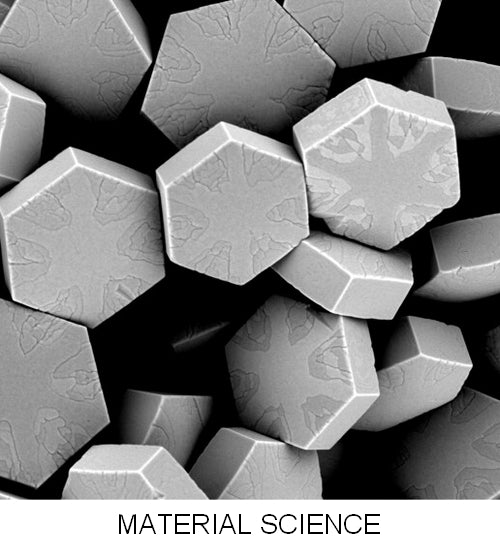

    Applications

    Not sure which system best fits your needs?

    Our team can help you compare options and determine the right configuration for your application.
