AIO-TL-10

All-In-One-Tipless

$394.20

Tipless AFM Probe with 4 Different Cantilevers for Various Applications

Tipless AFM Probe with 4 Different Cantilevers for Various Applications

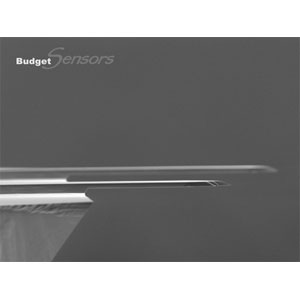

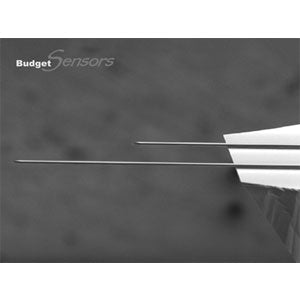

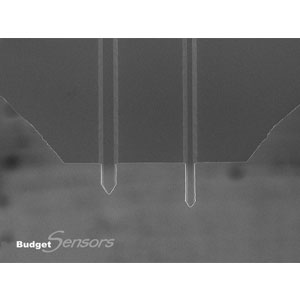

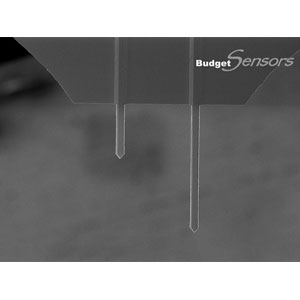

Versatile monolithic silicon AFM probe with 4 different tipless cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping/ non-contact mode.

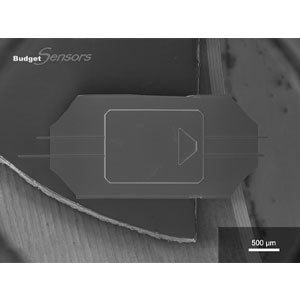

The AFM holder chip fits most commercial AFM systems as it is industry standard size.

The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose in the very last moment the right cantilever for each application. You don't need to stock various AFM Probe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One cantilevers differs from the geometry of comparable specialized single-cantilever AFM probes.

Cantilever A - Contact Mode		Cantilever B - Force Modulation
Shape	Beam	Shape	Beam
Force Constant	0.2N/m - From 0.04N/m To 0.7N/m	Force Constant	2.7N/m - From 0.4N/m To 10N/m
Resonance Frequency	15kHz - From 10kHz To 20kHz	Resonance Frequency	80kHz - From 50kHz To 110kHz
Length	500µm - From 490µm To 510µm	Length	210µm - From 200µm To 220µm
Width	30µm - From 25µm To 35µm	Width	30µm - From 25µm To 35µm
Thickness	2.7µm - From 1.7µm To 3.7µm	Thickness	2.7µm - From 1.7µm To 3.7µm
Cantilever C - Soft Tapping		Cantilever D - Tapping Mode
Shape	Beam	Shape	Beam
Force Constant	7.4N/m - From 1N/m To 29N/m	Force Constant	40N/m - From 7N/m To 160N/m
Resonance Frequency	150kHz - From 70kHz To 230kHz	Resonance Frequency	350kHz - From 200kHz To 500kHz
Length	150µm - From 140µm To 160µm	Length	100µm - From 90µm To 110µm
Width	30µm - From 25µm To 35µm	Width	50µm - From 45µm To 55µm
Thickness	2.7µm - From 1.7µm To 3.7µm	Thickness	2.7µm - From 1.7µm To 3.7µm
