AIO-10

All-In-One

Select Quantity
AFM Probe with 4 Different Cantilevers for Various Applications

  • AFM Probe with 4 Different Cantilevers for Various Applications

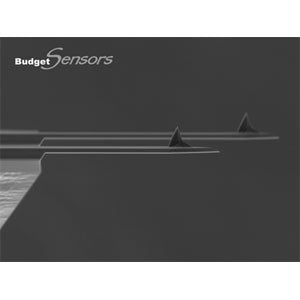

    Versatile monolithic silicon AFM probe with 4 different cantilevers on a single AFM holder chip for various applications: contact mode, force modulation mode, soft tapping mode and high frequency tapping / non-contact mode.

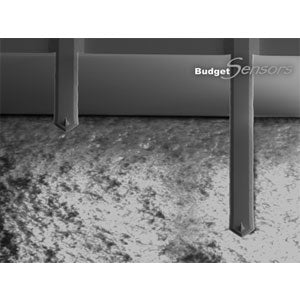

    The rotated tips allow for more symmetric representation of high sample features. The consistent tip radii ensure good resolution and reproducibility.

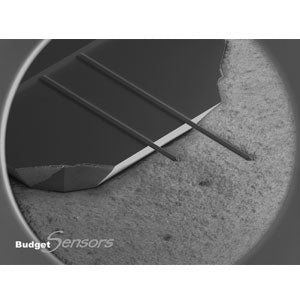

    The AFM holder chip fits most commercial AFM systems as it is industry standard size.

    The main advantage of this product compared to regular, single-cantilever AFM probes is the freedom to choose in the very last moment the right cantilever for each application. You do not need to stock various AFM Probe types any more. Nevertheless, this product is not meant as a substitution to comparable single-cantilever AFM probes, because the geometry of each one of the All-In-One cantilevers differs from the geometry of comparable specialized single-cantilever AFM probes.

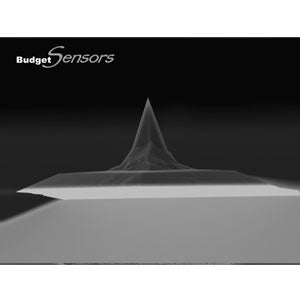

  • AFM Tip

    SHAPE Rotated
    Tip Height 17µm
    From 15µm To 19µm
    Tip Setback 15µm
    From 10µm To 20µm
    Tip Radius < 10nm
    Half Cone Angle 20°-25° along cantilever axis, 25°-30° from side, 10° at the apex
  • Cantilever A - Contact Mode Cantilever B - Force Modulation
    Shape Beam Shape Beam
    Force Constant 0.2N/m - From 0.04N/m To 0.7N/m Force Constant 2.7N/m - From 0.4N/m To 10N/m
    Resonance Frequency 15kHz - From 10kHz To 20kHz Resonance Frequency 80kHz - From 50kHz To 110kHz
    Length 500µm - From 490µm To 510µm Length 210µm - From 200µm To 220µm
    Width 30µm - From 25µm To 35µm Width 30µm - From 25µm To 35µm
    Thickness 2.7µm - From 1.7µm To 3.7µm Thickness 2.7µm - From 1.7µm To 3.7µm
    Cantilever C - Soft Tapping Cantilever D - Tapping Mode
    Shape Beam Shape Beam
    Force Constant 7.4N/m - From 1N/m To 29N/m Force Constant 40N/m - From 7N/m To 160N/m
    Resonance Frequency 150kHz - From 70kHz To 230kHz Resonance Frequency 350kHz - From 200kHz To 500kHz
    Length 150µm - From 140µm To 160µm Length 100µm - From 90µm To 110µm
    Width 30µm - From 25µm To 35µm Width 50µm - From 45µm To 55µm
    Thickness 2.7µm - From 1.7µm To 3.7µm Thickness 2.7µm - From 1.7µm To 3.7µm
