Large Double Slotted Vise

Interchangeable
Modular SEM Specimen Holders

This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed.

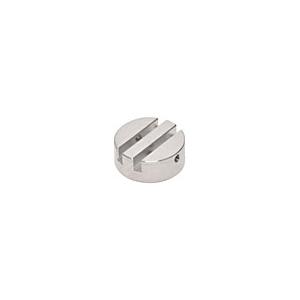

16372 - Large Double Slotted Set Screw Vise, Ø25mm x 10mm H, M4

Large Double Slotted Set Screw Vise with 2 ea. 2.5mm by 5mm deep slots. Dimensions ø25x10 mm (1 x 0.4"). Clamp thin specimens and cross sections without the need for tape of conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M3 x 6mm, flat head set screw, stainless steel.

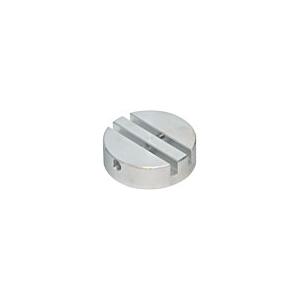

16312 - Large Double Slotted Set Screw Vise, Ø32 x 10mm, M4

Ø32mm Large double slotted set screw vise with 2 ea. 2.5mm wide by 5mm deep slots. Dimensions Ø32 x 10mm (1-1/4" x 0.394"). Clamp thin specimens and cross sections without the need for tape or conductive paint. Material: machined aluminum with 2 stainless steel allen set screws. Allen wrench included.

Screw used is M3 x 8mm, flat head set screw, stainless steel.
